MS20426AD3-5
McMaster-Carr
The MS20426AD3-5 is a solid rivet manufactured by McMaster-Carr from aluminum alloy 2117. It features a countersunk head and is designed for aerospace applications.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Style | |
| Material |

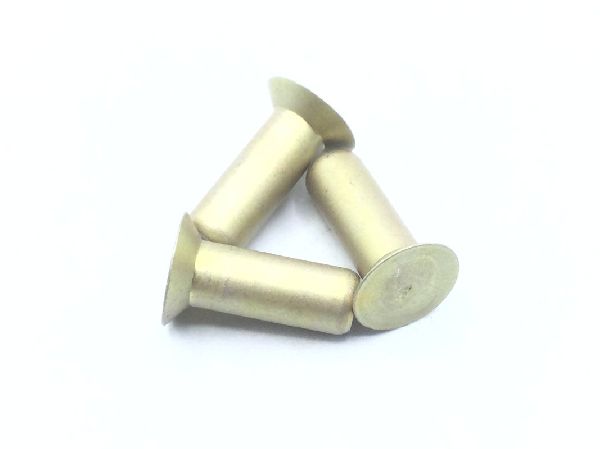

This MS20426AD5-7 solid rivet from Military Spec is designed for secure fastening applications. It features a flush, countersunk head with a major diameter of 0.290 inches and a countersink angle between 99.5 and 100.5 degrees, allowing for a smooth, flush finish when installed.
The rivet has a shank diameter ranging from 0.155 to 0.159 inches and a fastener length between 0.365 and 0.385 inches. It is constructed from Aluminum Alloy 2117, conforming to Qq-a-430 federal specification, and offers a shear strength of 26,000 psi. The surface treatment is anodize or chromate, meeting Mil-a-8625 or mil-c-5541 specifications.
This rivet is supplied in a 1-pound standard package, with an approximate pack weight of 1.010 lb. It is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $49.82 | $49.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS20426AD5-7 rivet features a flush (flat) countersunk head style.
The MS20426AD5-7 rivet is made from Aluminum alloy 2117.
The shear strength of the MS20426AD5-7 rivet is 26,000 psi.
The MS20426AD5-7 rivet is available with an anodize or chromate surface treatment.
The MS20426AD5-7 rivet is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the MS20426AD5-7 rivet is 1 Unlimited.
