| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diameter | |
| Head Style | |
| Length | |
| Material | |
| Military Grade | |
| SVHC Present |

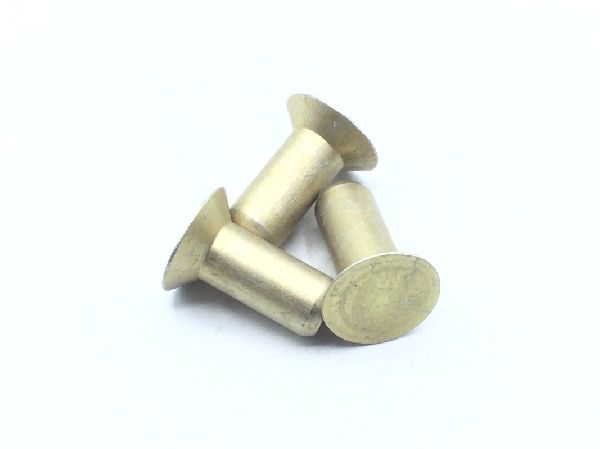

The MS20426AD6-7 is a solid rivet from Military Spec, designed for secure fastening applications. This rivet is constructed from aluminum alloy 2117, meeting the Qq-a-430 federal specification. It features a countersunk head style, with a countersink angle between 99.5 and 100.5 degrees, ensuring a flush finish when installed.
The fastener has a length of 11/16 inches and a shank diameter between 0.186 and 0.190 inches. The head major diameter ranges from 0.349 to 0.357 inches. The rivet's shank is straight with a radius chamfered tip. It is solution heat treated to T-4.
Surface treatment options include anodize or oxide film, adhering to Mil-a-8625 or Mil-c-5541 military specifications. The shear strength is rated at 26,000 psi. This product is packaged in a pre-packaged bag of 1 each, with an approximate pack weight of 1.000 lb.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS20426AD6-7 rivet is made from aluminum alloy 2117.
The MS20426AD6-7 rivet has a length of 11/16 inches.
The MS20426AD6-7 rivet features a flush (flat) countersunk head style.
The countersink angle for the MS20426AD6-7 rivet is between 99.5 and 100.5 degrees.
The shank diameter of the MS20426AD6-7 rivet is between 0.186 and 0.190 inches.
The MS20426AD6-7 rivet has a shear strength of 26,000 psi.
The MS20426AD6-7 rivet is available with an anodize or oxide film surface treatment.
