MP3309CGQG-Z
MPS/
The MP3309CGQG-Z is an LED Driver IC from Monolithic Power Systems Inc. It offers a 35V output voltage and supports Analog and PWM dimming.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
930 pcs
|
930 pcs | On Request | 1 | On Request | On Request | 1448+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package |

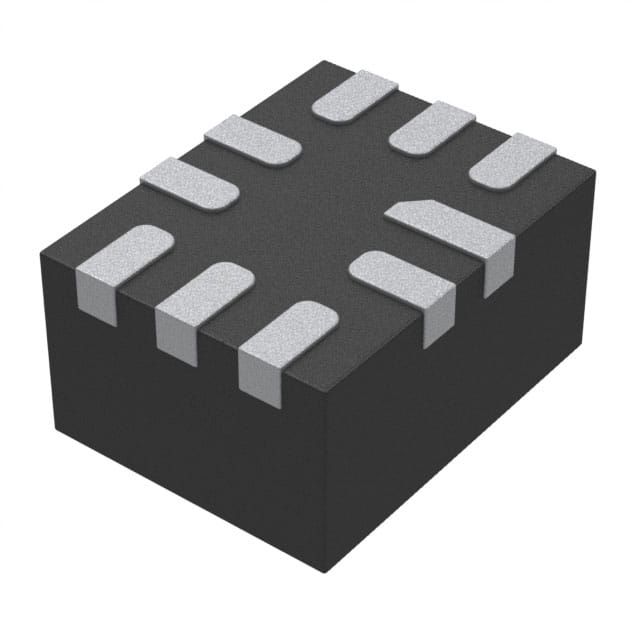

The MP3309GQG-Z is an integrated circuit from Monolithic Power Systems Inc., categorized as an LED Driver IC. This device functions as a DC-DC regulator with a step-up (boost) topology, designed for backlight applications.
Key electrical specifications include an output voltage of up to 35V and an output current per channel of 1.5A. It operates with a supply voltage ranging from 2.7V to 5.5V and features a switching frequency of 640kHz. The dimming control is available through both Analog and PWM methods.
This component is housed in a 10-VFQFN package and is designed for surface mounting. The operating temperature range is -40°C to 125°C (TJ). The device includes internal switches, simplifying its integration into designs.
Environmental compliance includes RoHS3 status. The Moisture Sensitivity Level (MSL) is 1 (Unlimited), and it is REACH Unaffected.
2.7V to 5.5V.
Up to 35V.
1.5A per channel.
640kHz.
Analog and PWM.
-40°C to 125°C.
10-VFQFN (10-QFN 1.4x1.8).
