| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | 1450+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimming | |
| Frequency | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Topology |

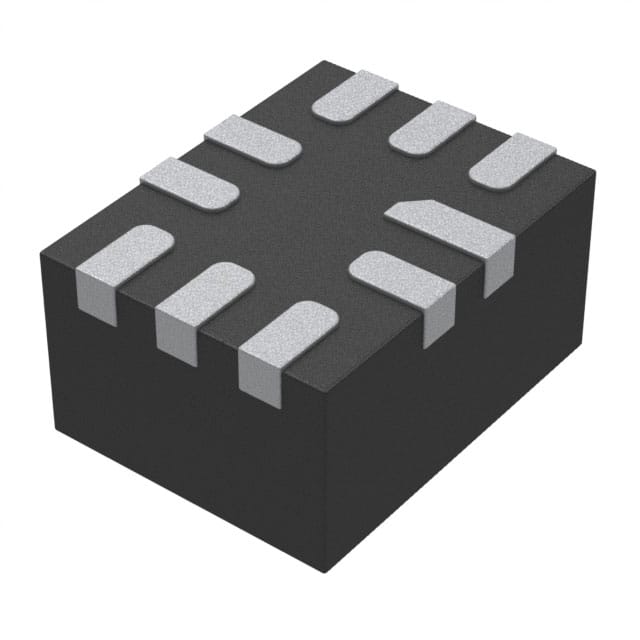

The MP3309CGQG-Z is an integrated circuit from Monolithic Power Systems Inc., categorized as an LED Driver IC. This device functions as a DC-DC regulator with a step-up (Boost) topology, designed to provide a high output voltage of up to 35V.
Key electrical specifications include an operating supply voltage range of 2.7V to 5.5V and a switching frequency of 640kHz. It supports both Analog and PWM dimming methods, offering flexibility in controlling LED brightness. The internal switch is integrated, simplifying the design.
This component is housed in a 10-VFQFN package and is designed for surface mounting. The operating temperature range is -40°C to 125°C (TJ), making it suitable for various environmental conditions. The MP3309CGQG-Z is RoHS3 compliant.
This LED driver is suitable for applications requiring efficient power management for LED illumination, such as backlighting.
The supply voltage range is 2.7V to 5.5V.
It comes in a 10-VFQFN surface mount package, specifically a 10-QFN (1.4x1.8) package.
The operating temperature range is -40°C to 125°C.
The switching frequency is 640kHz.
It uses a Step-Up (Boost) topology.
It supports both analog and PWM dimming.
It has a single output.
