| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Ingress Protection | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Thread Size | |
| Type | |
| Voltage Rating |

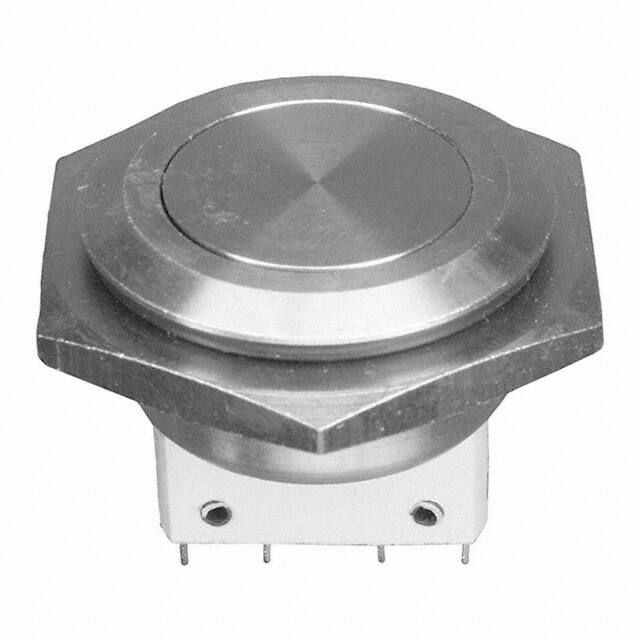

The Bulgin MP0038 is an anti-vandal pushbutton switch suitable for front panel mounting. It features a durable stainless steel construction and a round, flush actuator with no marking. This switch is rated for 5A at 250VAC and 2A at 28VDC, with a DPST-NO/NC circuit configuration.
Designed for harsh environments, the MP0038 provides IP66 sealing against dust and water ingress. Its termination style is solder lug, and it requires a 25.80mm diameter panel cutout. The operating temperature range is -20°C to 70°C, and it boasts a mechanical lifespan of 1,000,000 operations and an electrical lifespan of 35,000 operations.
Key specifications include a contact resistance of less than 10mΩ and an insulation resistance greater than 1GΩ. The switch function is On-Mom, Off-Mom, providing reliable momentary or maintained action as needed in control applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bulgin MP0038 switch is rated for 5A at 250VAC and 2A at 28VDC.
The MP0038 switch offers On-Mom, Off-Mom functionality.
The MP0038 switch has an IP66 ingress protection rating.
The operating temperature range for the MP0038 switch is -20°C to 70°C.
The panel cutout dimension for the MP0038 is a 25.80mm diameter.
