| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Current | |
| Height | |
| Length | |
| Lumens | |
| Mounting Type | |
| Supplier Device Package | |
| Supplier Package | |
| Viewing Angle | |
| Voltage | |
| Width |

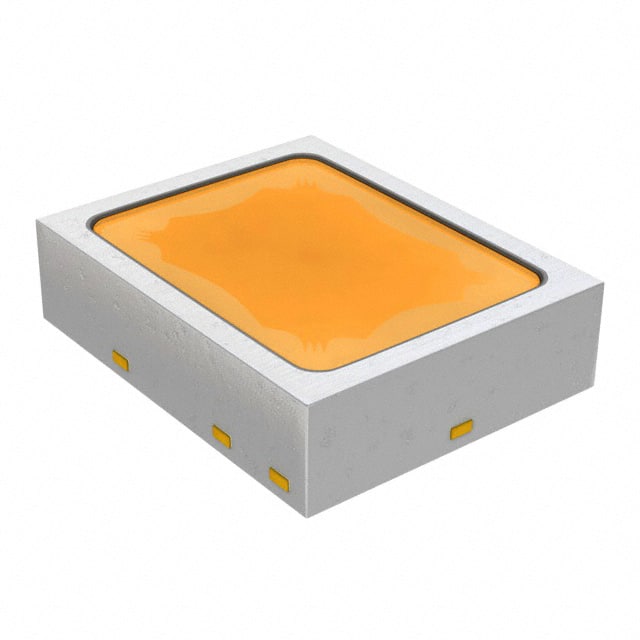

The Luminus Devices Inc. MP-2016-1100-40-90 is a mid-power LED designed for high-performance general lighting applications. This LED offers a neutral white light with a correlated color temperature (CCT) of 4000K and a high color rendering index (CRI) of 90, ensuring accurate color representation.
With an efficacy of 144 lumens per watt, this component is optimized for maximum brightness and energy efficiency. It operates at a forward current of 60mA and a forward voltage of 3V. The viewing angle is 110°, providing broad light distribution.
The LED is housed in an 0806 (2016 metric) package, measuring 2.00mm in length, 1.60mm in width, and 0.52mm in height. It features a surface mount type, making it compatible with automatic placement equipment and infrared reflow soldering processes. The datasheet indicates compatibility with automatic placement equipment and infrared reflow solder processes, along with RoHS and REACH compliance.
Key applications include linear fluorescent, A-lamps, panel lighting, downlights, and architectural lighting. The product is designed for reliability, having passed rigorous environmental and mechanical stress tests.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CCT of the MP-2016-1100-40-90 LED is 4000K.
The CRI for the MP-2016-1100-40-90 LED is 90.
The efficacy of the MP-2016-1100-40-90 LED is 144 lm/W.
The MP-2016-1100-40-90 LED package dimensions are 2.00mm (Length) x 1.60mm (Width) x 0.52mm (Height).
The forward current for the MP-2016-1100-40-90 LED is 60mA.
The forward voltage of the MP-2016-1100-40-90 LED is 3V.
This LED is suitable for linear fluorescent, A-lamps, panel lighting, downlights, and architectural lighting.
