| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
105 pcs
|
105 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish - Tail | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Data Rate | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Plating Material | |
| Row Spacing | |
| SMT Lead Coplanarity | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination |

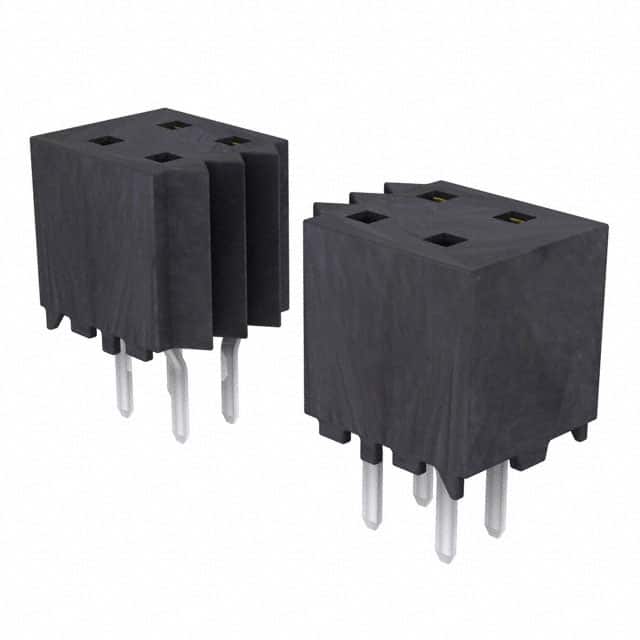

The Samtec MMS-117-01-L-DV is a 34-position, double-row receptacle from the MMS series of Classic Socket Strips. It features a 2.00mm (0.079 inches) pitch and uses the Tiger Claw dual-wipe contact system for reliable electrical performance. The connector is terminated via through-hole solder and has a push-pull fastening mechanism for easy mating and unmating.
Electrical specifications include a current rating of 3.9A per pin (with 2 pins powered) and a data rate capability of up to 8 Gbps NRZ. The contact finish is 10 µ" gold on the mating surface with matte tin on the tail, over 50 µ" nickel plating. The insulator is black LCP and the operating temperature range is -55°C to 125°C with gold plating.
This connector is designed for board-to-board stacking or cable-to-board connections. It is available in a tube packaging of 16 units per tube. The MMS-117-01-L-DV is lead-free solderable and RoHS compliant per manufacturer claim (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.19 | $6.19 |
| 25+ | $5.98 | $5.98 |
| 48+ | $5.37 | $5.37 |
| 512+ | $4.44 | $4.44 |
| 1,008+ | $3.76 | $3.76 |
| 2,512+ | $3.34 | $3.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions arranged in 2 rows.
2.00mm (0.079 inches).
3.9A per pin (with 2 pins powered).
Through-hole solder termination.
-55°C to 125°C with gold plating.
Gold on the mating surface and matte tin on the tail.
Up to 8 Gbps NRZ.
