| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
427,020 pcs
|
427020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Bidirectional Channels | |
| Capacitance @ Frequency | |
| Current | |
| Diode Configuration | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |
This Nexperia MMBZ9V1AL,215 is a uni-directional TVS diode designed for electrostatic discharge (ESD) protection. It offers a peak pulse power dissipation of 24W and a maximum reverse stand-off voltage of 6V.
The diode has a minimum breakdown voltage of 8.65V at 1mA and a clamping voltage of 14V at 1.7A. Its capacitance is 155pF at 1MHz, making it suitable for low-capacitance applications. The operating temperature range is from -55°C to 150°C.

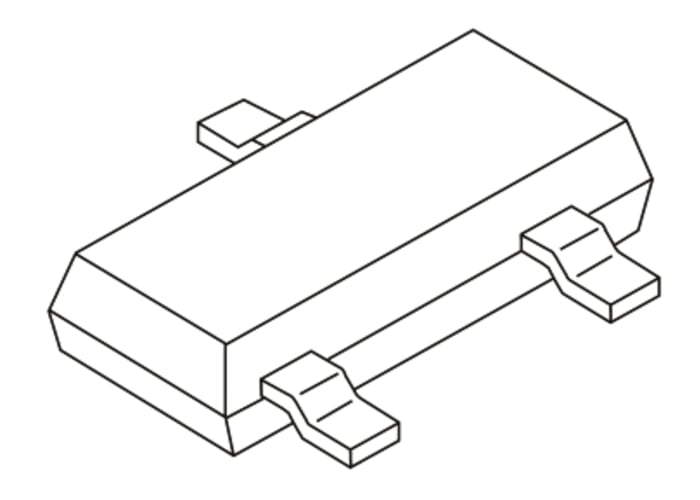

Encapsulated in a SOT-23 (TO-236AB) surface-mount plastic package, this device is ideal for applications requiring robust ESD protection in a small form factor. It features two elements per chip and is configured for uni-directional protection.
Key electrical characteristics include a maximum reverse leakage current of 100nA at 6V. The device is also noted for its automotive standard AEC-Q101 compliance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak pulse power dissipation is 24W.
The maximum reverse stand-off voltage is 6V.
The minimum breakdown voltage is 8.65V at 1mA.
The clamping voltage is 14V at 1.7A.
The package type is SOT-23.
