| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
685 pcs
|
685 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Frequency | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The NXP Semiconductors MK22FN512VFX12 is a high-performance microcontroller based on the 120 MHz Arm Cortex-M4 core with DSP instructions and a Floating Point Unit (FPU). It offers 512KB of embedded flash memory and 128KB of RAM, making it suitable for cost-sensitive applications requiring low-power operation, USB connectivity, and efficient processing.
This device supports a wide voltage range from 1.71V to 3.6V and operates within an ambient temperature range of -40°C to 105°C. It includes a comprehensive set of peripherals such as DMA, I2S, PWM, WDT, and various communication interfaces including I2C, SPI, UART, and USB OTG.

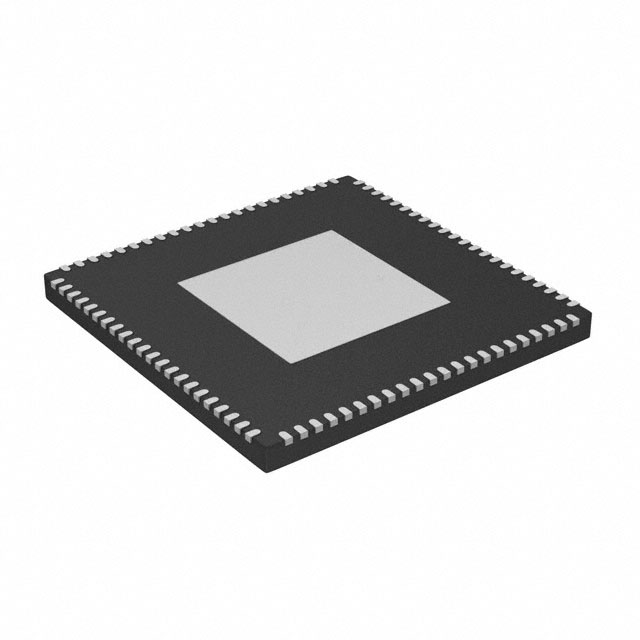

The MK22FN512VFX12 is packaged in an 88-QFN (10x10) surface-mount package. Its design prioritizes processing efficiency and peripheral integration, with features like low-power modes and fast wakeup times.
Key features include a 120MHz clock speed, 512KB flash memory, 128KB RAM, and a 32-bit ARM Cortex-M4 core. The microcontroller also integrates analog modules like 16-bit ADCs and 12-bit DACs, along with security features such as a hardware CRC module and a random-number generator.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.71V to 3.6V.
The MK22FN512VFX12 is available in an 88-QFN (10x10) package.
The operating temperature range is -40°C to 105°C (TA).
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
The core processor is an ARM Cortex-M4.
It has 512KB of embedded flash memory.
