MK16-B-2 The Standex-Meder Electronics MK16-B-2 is a surface mount reed switch designed for various applications. It offers a voltage rating of 200V and a current rating of 500mA.
Mfr Part #:

MK16-B-2

Available from 1 distributors
Mfr Name: Standex-Meder Electronics
Standex-Meder Electronics
The Standex-Meder Electronics MK16-B-2 is a surface mount reed switch designed for various applications. It offers a voltage rating of 200V and a current rating of 500mA.
✓ Total Stock: 15 pcs
$ Price Range: $0.75

MK16-B-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MK16-B-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Circuit
Current
Height
Height Above Board
Length
Mounting Type
Operate Range
Operate Time
Operating Temperature
Power
Release Time
Termination Style
Type
Voltage
Width
View Similar Products (0)

MK16-B-2 Description

Short technical summary and product information.

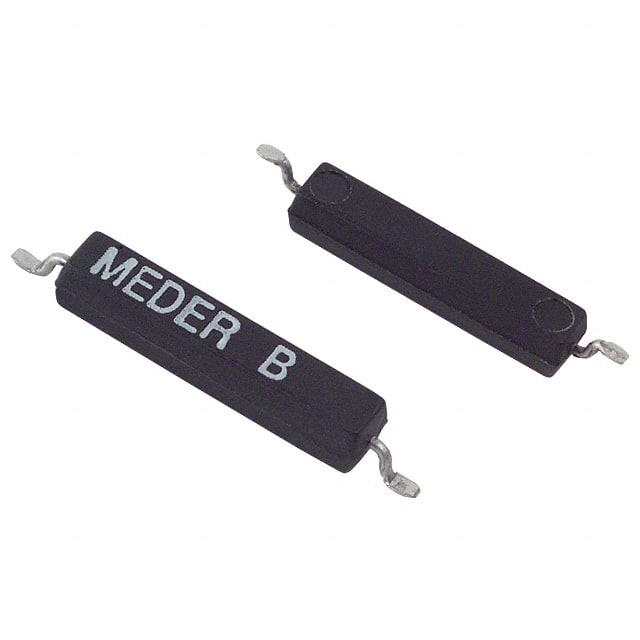

The Standex-Meder Electronics MK16-B-2 is a SPST-NO reed switch with a molded body and gull wing termination style. It is designed for surface mount applications and operates within a temperature range of -40°C to 130°C.



This reed switch has a voltage rating of 200V and a current rating of 500mA (AC/DC), with a power rating of 10W. Its operate time is 0.6ms and release time is 0.05ms. The operate range is between 10 to 15 AT.



Key mechanical dimensions include a body length of 11.60mm (0.457"), width of 2.30mm (0.091"), and height of 2.30mm (0.091"). The height above the board is 2.40mm (0.094"). It also features a capacitance of 0.2 pF.



This component is suitable for applications requiring reliable magnetic switching in a compact, surface-mountable form factor.

MK16-B-2 Quick Information

Product Type: Reed Switch
Series: MK16
Canonical Name: MK16-B-2 Surface Mount Reed Switch
Subcategory: Magnetic Reed Switch

MK16-B-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MK16-B-2 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MK16-B-2 Features

  • Surface mount reed switch with gull wing termination.
  • Rated for 200V and 500mA current.
  • Operates between -40°C and 130°C.
  • Compact dimensions for space-constrained designs.
  • SPST-NO circuit configuration.

MK16-B-2 Applications

  • Suitable for automated assembly processes.
  • Ideal for magnetic sensing applications.
  • Used in compact electronic devices.
  • Reliable switching in various environments.

MK16-B-2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the MK16-B-2 reed switch?

The MK16-B-2 reed switch has a voltage rating of 200V.

What is the current rating for the MK16-B-2 reed switch?

The MK16-B-2 reed switch is rated for 500mA (AC/DC).

What is the operating temperature range for this reed switch?

The operating temperature range for the MK16-B-2 reed switch is -40°C to 130°C.

What type of mounting does the MK16-B-2 reed switch use?

The MK16-B-2 reed switch is designed for surface mount applications.

What is the operate range of the MK16-B-2 reed switch?

The operate range for the MK16-B-2 reed switch is 10 to 15 AT.
