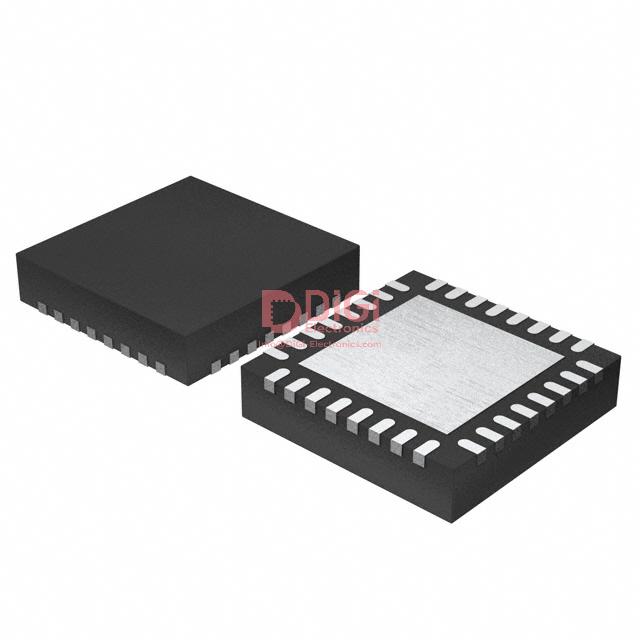

MK10DN128VFM5 The NXP Semiconductors MK10DN128VFM5 is a 32-bit microcontroller featuring an ARM Cortex-M4 core running at 50MHz. It offers 128KB of FLASH program memory and 16KB of RAM.
Mfr Part #:

MK10DN128VFM5

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MK10DN128VFM5 is a 32-bit microcontroller featuring an ARM Cortex-M4 core running at 50MHz. It offers 128KB of FLASH program memory and 16KB of RAM.
✓ Total Stock: 1,134 pcs
$ Price Range: $6.40

MK10DN128VFM5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,124 pcs
On Request
1124 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MK10DN128VFM5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

MK10DN128VFM5 Description

Short technical summary and product information.

The NXP Semiconductors MK10DN128VFM5 is a high-performance microcontroller from the Kinetis K10 family. It is built around a 32-bit ARM Cortex-M4 core with DSP instructions, capable of operating at speeds up to 50MHz.



This device provides 128KB of FLASH program memory and 16KB of RAM, making it suitable for a wide range of embedded applications. It supports various communication interfaces including I2C, IrDA, SPI, and UART/USART, along with peripherals such as DMA, I2S, LVD, POR, PWM, and WDT.



The MK10DN128VFM5 operates within a voltage range of 1.71V to 3.6V and has an operating temperature range of -40°C to 105°C. It is supplied in a 32-HVQFN (5x5) package and is designed for surface mounting.



Key features include a 10-channel 16-bit SAR ADC and multiple timers for general-purpose and motor control applications. The microcontroller also includes security features like a hardware CRC module and a unique identification number.

MK10DN128VFM5 Quick Information

Product Type: Microcontroller
Series: Kinetis K10
Canonical Name: MK10DN128VFM5 ARM Cortex-M4 Microcontroller
Subcategory: Microcontrollers

MK10DN128VFM5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MK10DN128VFM5 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MK10DN128VFM5 Features

  • ARM Cortex-M4 core with DSP instructions.
  • Operates at speeds up to 50MHz.
  • 128KB FLASH program memory.
  • 16KB RAM.
  • 32-HVQFN (5x5) surface mount package.

MK10DN128VFM5 Applications

  • Suitable for embedded control systems.
  • Ideal for applications requiring DSP capabilities.
  • Used in devices needing multiple communication interfaces.
  • Supports motor control applications.

MK10DN128VFM5 FAQs

10 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the MK10DN128VFM5?

The operating voltage range is 1.71 V to 3.6 V.

What package type is the MK10DN128VFM5 supplied in?

The MK10DN128VFM5 is supplied in a 32-HVQFN (5x5) package.

What is the operating temperature range for the MK10DN128VFM5?

The operating temperature range is -40°C to 105°C.

What is the RoHS status of the MK10DN128VFM5?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the MK10DN128VFM5?

The Moisture Sensitivity Level is 1 Unlimited.

What is the core processor of the MK10DN128VFM5?

The core processor is ARM Cortex-M4.

What is the clock speed of the MK10DN128VFM5?

The clock speed is 50 MHz.

How much program memory does the MK10DN128VFM5 have?

The program memory size is 128 KB.

What is the RAM size of the MK10DN128VFM5?

The RAM size is 16 KB.

What communication interfaces are supported by the MK10DN128VFM5?

Supported communication interfaces include I2C, IrDA, SPI, and UART/USART.
