| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Resistance | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

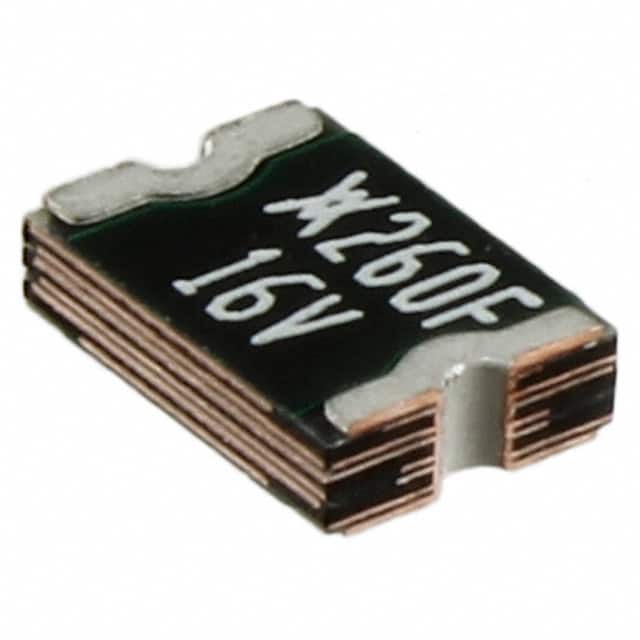

The MINIASMDC260F/16-2 is a polymeric positive temperature coefficient (PTC) resettable fuse from Littelfuse Inc. It is designed to provide overcurrent protection in a compact surface mount package.
Key electrical specifications include a maximum voltage rating of 16V and a hold current of 2.6A. The device has an initial resistance of 50mΩ and a typical time to trip of 5 seconds. It is rated for operation over a temperature range of -40°C to 85°C.
The component is housed in a 1812 (4532 Metric) concave package with surface mount termination. Its dimensions are 4.60mm in length, 3.24mm in width, and a maximum thickness of 1.52mm. The part is AEC-Q200 qualified, making it suitable for automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.69 | $0.69 |
| 50+ | $0.57 | $0.57 |
| 100+ | $0.53 | $0.53 |
| 250+ | $0.47 | $0.47 |
| 500+ | $0.44 | $0.44 |
| 1,500+ | $0.33 | $0.33 |
| 3,000+ | $0.30 | $0.30 |
| 4,500+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 16V.
The hold current (Ih) is 2.6A.
The initial resistance (Ri) is 50mΩ.
The typical time to trip is 5 seconds.
It comes in a 1812 (4532 Metric) concave surface mount package.
The operating temperature range is -40°C to 85°C.
Yes, it is rated AEC-Q200.
