| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,138 pcs
|
31138 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Voltage | |
| Voltage Supply |

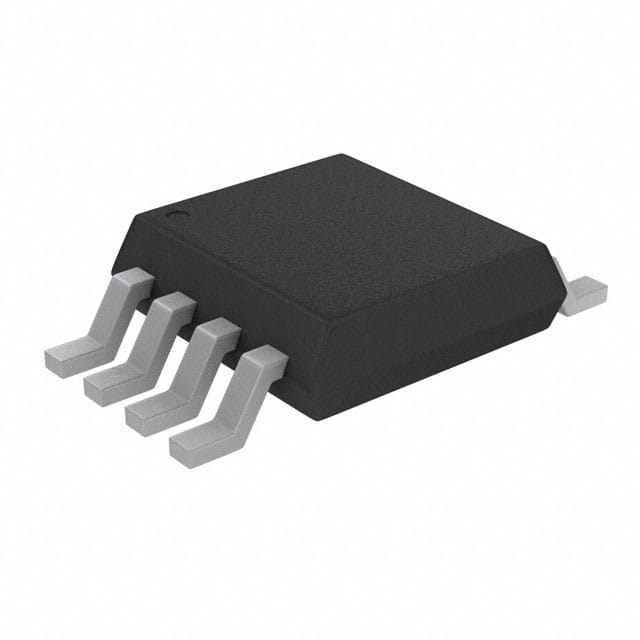

The MIC2075-2YMM from Microchip Technology is an integrated circuit functioning as an N-Channel power distribution switch. It is designed for general-purpose applications and features a 1:1 input-to-output ratio with a high-side output configuration.
This device can handle a maximum output current of 500mA and supports a load voltage range from 2.7V to 5.5V. Key electrical characteristics include an Rds On (Typ) of 90mOhm and an interface controlled by an On/Off signal. The switch type is classified as general purpose, with an inverting input type.
Fault protection features are integrated, including fixed current limiting, over-temperature protection, and undervoltage lockout (UVLO). The device also includes slew rate control and a status flag for monitoring. It operates within a temperature range of -40°C to 85°C (TA).
The MIC2075-2YMM is available in an 8-MSOP package, suitable for surface mounting. The package case is specified as 8-TSSOP, 8-MSOP with a width of 0.118 inches (3.00mm). It is supplied on tape and reel, with a standard package quantity of 2500 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The load voltage range is 2.7V to 5.5V. No separate supply voltage is required.
The device is available in an 8-MSOP package, also listed as 8-TSSOP (0.118" or 3.00mm width), for surface mount mounting.
-40°C to +85°C (TA).
The maximum output current is 500mA.
It provides fixed current limiting, over-temperature shutdown, and under-voltage lockout (UVLO).
The typical Rds(on) is 90mOhm.
The output is a high-side, N-channel configuration with 1:1 input-to-output ratio.
