| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Voltage | |
| Voltage Supply |

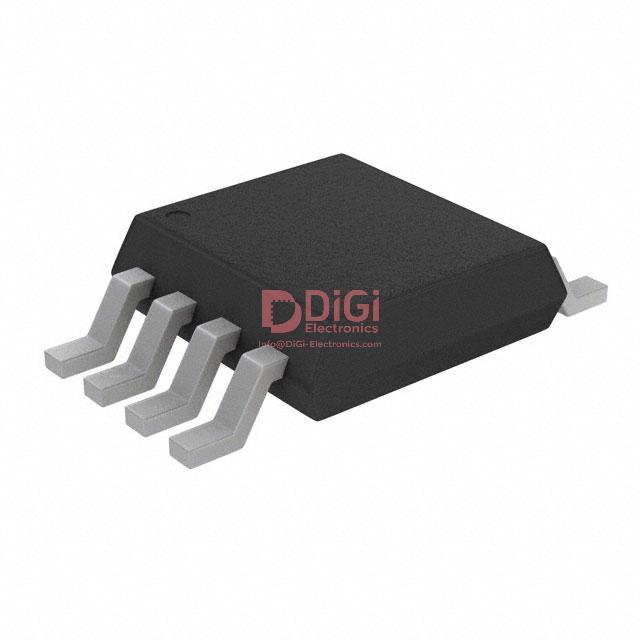

The MIC2025-2YMM from Microchip Technology is a general-purpose N-Channel power distribution switch designed for efficient power management. It offers a maximum output current of 500mA and a 1:1 input-to-output ratio, making it suitable for various load driving applications.
This switch features an On/Off interface and operates within a load voltage range of 2.7V to 5.5V. Key electrical characteristics include a typical Rds On of 90mOhm and fault protection mechanisms such as current limiting, over-temperature protection, and undervoltage lockout (UVLO). The device is specified for operation between -40°C and 85°C.
Packaged in an 8-MSOP (or 8-TSSOP) surface-mount configuration, the MIC2025-2YMM is designed for ease of integration into compact electronic designs. Its high-side output configuration and non-inverting input type provide flexibility in circuit design. The switch is also equipped with features like slew rate control and a status flag for enhanced system monitoring.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The load voltage range is 2.7V to 5.5V.
It is available in an 8-MSOP package (also 8-TSSOP, 8-MSOP 0.118" width).
-40°C to 85°C.
500mA.
Fixed current limiting, over-temperature shutdown, and under-voltage lockout (UVLO).
90mOhm.
On/Off control with non-inverting input.
