| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Pitch | |
| Saturation Current (Typical/Maximum) | |
| Shielding | |
| Standard Package Quantity | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Characteristic | |
| Temperature Rise Current (Typical/Maximum) | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Typical/Maximum) |

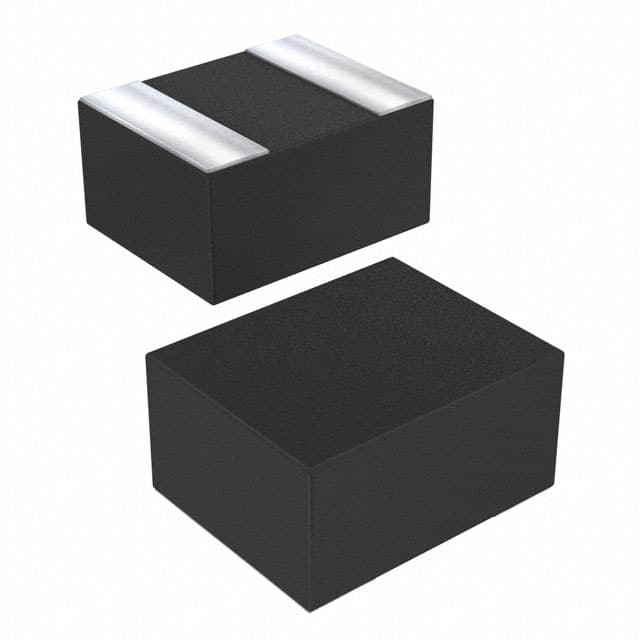

The Taiyo Yuden MEKK2520T1R0M is a shielded, wirewound fixed inductor from the MCOIL™ ME series. It offers an inductance value of 1 uH with a tolerance of ±20% and a rated current of 3.3A. The inductor has a maximum DC resistance of 53 mΩ and a saturation current of 4.3A.
Designed for surface mounting, this component comes in a 1008 (2520 Metric) case size with dimensions of 2.5mm in length, 2.0mm in width, and a maximum height of 1.0mm. The operating temperature range is -40°C to +125°C. It is compliant with RoHS and Halogen Free standards.
This inductor is suitable for general electronic equipment applications. Its construction and specifications make it a reliable choice for power supply circuits and signal filtering where inductance and current handling are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1 uH with a tolerance of ±20%.
The rated current is 3.3A.
The maximum DC resistance is 53 mΩ.
The operating temperature range is -40°C to +125°C.
It is in a 1008 (2520 Metric) surface mount package.
It is packaged on tape and reel with a standard quantity of 3000 pieces.
