| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage Range | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

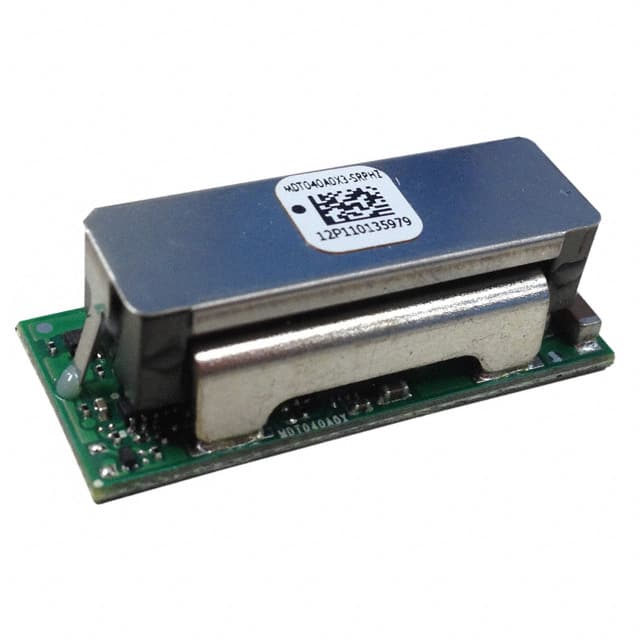

The MDT040A0X43-SRPHZ is a non-isolated point-of-load (PoL) DC-DC converter module from ABB Power Electronics, designed for commercial ITE (Information Technology Equipment) applications. This digital module delivers a single output voltage adjustable from 0.45V to 2V, with a maximum output current of 40A and power rating of 80W.
Operating from a 4.5V input, the module achieves up to 91.5% efficiency, minimizing power loss in space-constrained designs. It includes protection features such as overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). The control interface supports remote on/off with an active-high enable function.
The converter is housed in a compact surface-mount module package measuring 33.0mm x 13.5mm x 10.9mm. It is rated for an operating temperature range of -40°C to 105°C, suitable for a wide variety of commercial environments.
| Qty | Low | High |
|---|---|---|
| 140+ | $34.99 | $34.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage range is 0.45V to 2V.
The maximum output current is 40A.
The efficiency is 91.5%.
The operating temperature range is -40°C to 105°C.
It includes overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO).
The package is a Module with Surface Mount mounting.
RoHS status is listed as RoHS3 Compliant, but this is unverified.
