Mfr Part #:

MDF51K-2P-12DSA(20)

Name: MDF51K-2P-12DSA(20)
Brand: Hirose Electric
SKU: MDF51K-2P-12DSA(20)

Mfr Name: Hirose Electric

Description:

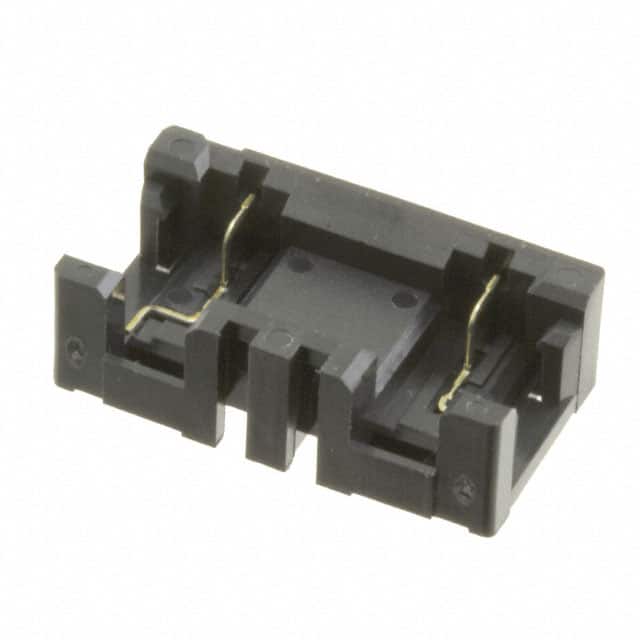

CONN HEADER VERT 2POS 12MM

Stock on Request

MDF51K-2P-12DSA(20) Description

Short technical summary and product information.

CONN HEADER VERT 2POS 12MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Hirose Electric
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	39.4Âµin (1.00Âµm)
Contact Length	0.110" (2.79mm)
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating (Amps)	1A
Fastening Type	Detent Lock
Features	Board Guide
Insulation Color	Black
Insulation Height	0.266" (6.76mm)
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-35°C ~ 85°C
Pitch	0.472" (12.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	3000V
