| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
168 pcs
|
168 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel |

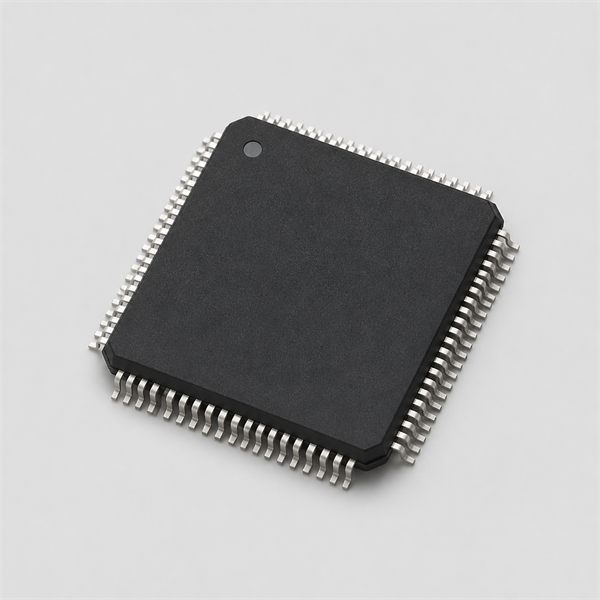

The Freescale Semiconductor MC9S08AW16CFUE is an 8-bit microcontroller featuring the HCS08 Central Processor Unit (CPU). It boasts a 40 MHz CPU speed and a 20 MHz internal bus frequency, supporting the HC08 instruction set with an added BGND instruction. This device includes a single-wire background debug mode interface and breakpoint capabilities for in-circuit debugging.
Memory options include up to 60 KB of on-chip in-circuit programmable FLASH memory with block protection and security features, alongside up to 2 KB of on-chip RAM. Clock source options are flexible, supporting crystal, resonator, external clock, or internally generated clocks with precision NVM trimming. System protection features include optional COP reset, low-voltage detection, and illegal opcode/address detection.
Peripherals include an analog-to-digital converter (ADC) with up to 16 channels and 10-bit resolution. The microcontroller is housed in a QFN package suitable for surface mounting.
This microcontroller is suitable for embedded applications requiring a balance of processing power, memory, and peripheral integration. Its features make it adaptable for various control and data processing tasks within embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.55 | $5.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CPU core is HCS08.
The CPU operates at 40 MHz with an internal bus frequency of 20 MHz.
It has up to 60 KB of on-chip in-circuit programmable FLASH memory.
The device has up to 2 KB of on-chip RAM.
Clock source options include crystal, resonator, external clock, or internally generated clock with precision NVM trimming.
System protection includes optional COP reset, low-voltage detection with reset or interrupt, and illegal opcode/address detection.
The analog-to-digital converter (ADC) has up to 16 channels and a 10-bit resolution.
