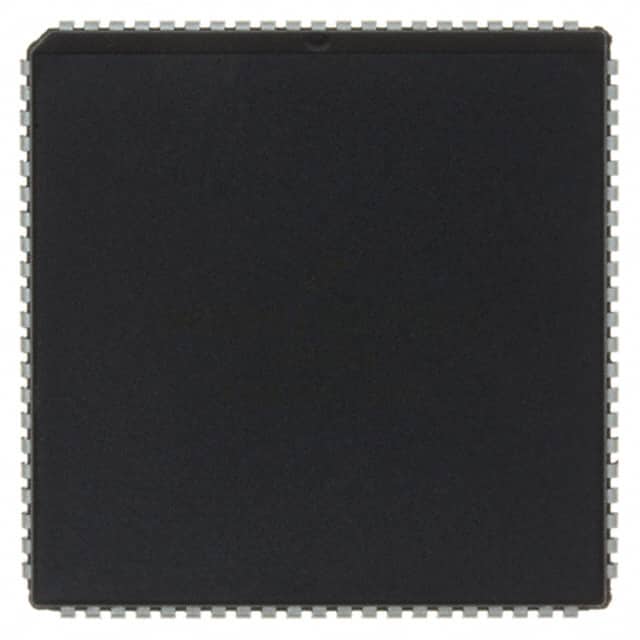

MC68HC11K1CFNE3 The NXP Semiconductors MC68HC11K1CFNE3 is an 8-bit microcontroller featuring a ROMless program memory type and operating at 3MHz. It is supplied in an 84-PLCC package.
Mfr Part #:

MC68HC11K1CFNE3

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MC68HC11K1CFNE3 is an 8-bit microcontroller featuring a ROMless program memory type and operating at 3MHz. It is supplied in an 84-PLCC package.
✓ Total Stock: 2,336 pcs
$ Price Range: $6.40

MC68HC11K1CFNE3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,336 pcs
On Request
2336 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC68HC11K1CFNE3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

MC68HC11K1CFNE3 Description

Short technical summary and product information.

The MC68HC11K1CFNE3 from NXP Semiconductors is an 8-bit microcontroller based on the HC11 core. This device operates at a speed of 3MHz and supports a voltage range of 4.5V to 5.5V. It features 768 bytes of RAM and 640 bytes of EEPROM, along with an 8-channel, 8-bit Analog-to-Digital converter.



Connectivity options include SCI and SPI interfaces, and peripherals such as POR, PWM, and WDT are integrated. The microcontroller has a ROMless program memory type and an internal oscillator. It is designed for surface mounting and comes in an 84-PLCC (J-Lead) package with dimensions of 29.29x29.29mm.



The operating temperature range for this component is -40°C to 85°C (TA). It offers 37 I/O lines for interfacing with other components.



This microcontroller is suitable for various embedded applications requiring an 8-bit processing core with integrated peripherals and memory.

MC68HC11K1CFNE3 Quick Information

Product Type: Microcontroller
Canonical Name: MC68HC11K1CFNE3 Microcontroller Unit
Subcategory: MCU

MC68HC11K1CFNE3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC68HC11K1CFNE3 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC68HC11K1CFNE3 Features

  • 8-bit HC11 core microcontroller.
  • Operates at 3MHz with 4.5V to 5.5V.
  • Features 768B RAM and 640B EEPROM.
  • Includes 8-channel, 8-bit ADC.
  • Surface mount 84-PLCC package.

MC68HC11K1CFNE3 Applications

  • Suitable for embedded control systems.
  • Used in applications requiring ROMless MCU.
  • Interface with SCI and SPI devices.
  • Supports analog signal acquisition.

MC68HC11K1CFNE3 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the MC68HC11K1CFNE3?

The operating voltage range is 4.5V to 5.5V.

What package type does the MC68HC11K1CFNE3 use?

It uses an 84-LCC (J-Lead) package with a supplier package of 84-PLCC (29.29x29.29).

What is the operating temperature range for this microcontroller?

The operating temperature range is from -40°C to 85°C.

Is the MC68HC11K1CFNE3 RoHS compliant?

Yes, it is RoHS3 compliant.
