| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
105 pcs
|
105 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Co | |
| Core Processor | |
| Graphics Acceleration | |
| Mounting Type | |
| Number of Cores | |
| Operating Temperature | |
| RAM Controllers | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The Freescale MC68302CEH16C is a versatile one-chip processor designed for networking and communications applications. It incorporates an MC68000/MC68008 microprocessor core, a system integration block, and a communications processor.
This device operates at 16MHz and supports a variety of protocols including HDLC/SDLC, Bisync, UART, DDCMP, and Totally Transparent. It features three full-duplex Serial Communications Controllers (SCCs) and two Serial Management Controllers (SMCs).
The MC68302CEH16C includes an Independent Direct Memory Access (IDMA) Controller, an interrupt controller, parallel I/O ports, and on-chip 1152-byte dual-port RAM. It also has three timers, four programmable chip-select lines, and a hardware watchdog timer for monitoring bus activity.

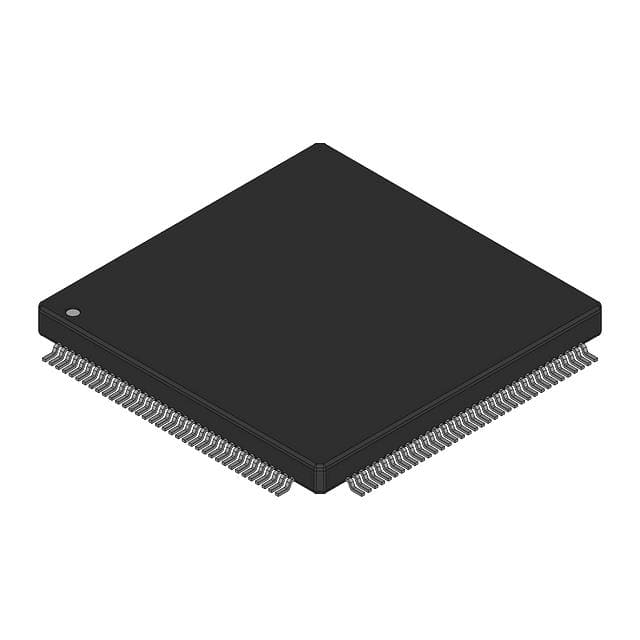

Packaged in a 132-BQFP Bumpered format, this microprocessor is designed for surface mounting. It operates within a temperature range of -40°C to 85°C and requires a 5.0V supply voltage.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.19 | $11.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C (TA)
132-BQFP Bumpered
RoHS3 Compliant
1 Unlimited
5.0V
M68000
16 MHz
