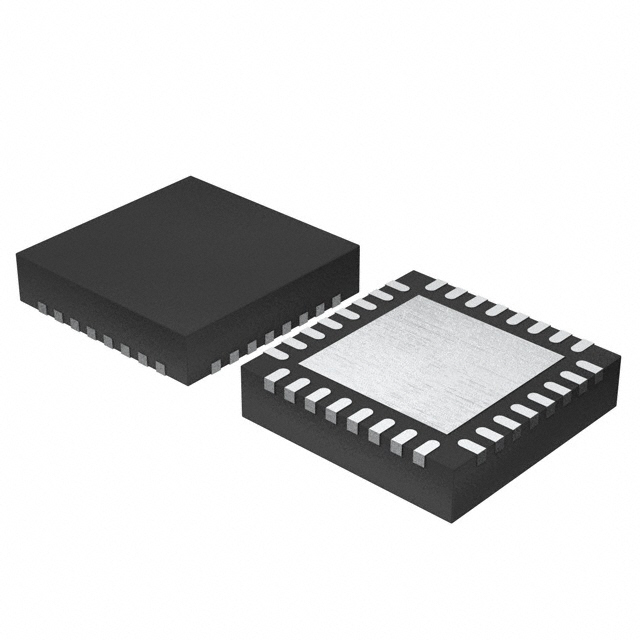

MC56F82743VFM The NXP Semiconductors MC56F82743VFM is a 32-bit microcontroller featuring a 56800EX core. It offers 64KB of Flash memory and operates at speeds up to 100MHz.
Mfr Part #:

MC56F82743VFM

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MC56F82743VFM is a 32-bit microcontroller featuring a 56800EX core. It offers 64KB of Flash memory and operates at speeds up to 100MHz.
✓ Total Stock: 796 pcs
$ Price Range: $6.40

MC56F82743VFM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
796 pcs
On Request
796 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC56F82743VFM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

MC56F82743VFM Description

Short technical summary and product information.

The MC56F82743VFM from NXP Semiconductors is a high-performance 32-bit microcontroller based on the 56800EX core, designed for demanding embedded applications. It provides 64KB of Flash program memory and 4KB of RAM, enabling complex software execution at speeds up to 100MHz.



This device integrates a comprehensive set of peripherals, including DMA, POR, PWM, and WDT, enhancing system functionality and reliability. For analog signal processing, it features 6x12-bit ADCs and 2x12-bit DACs. Connectivity options include I2C, SCI, and SPI interfaces, supported by 26 I/O pins.



The MC56F82743VFM is available in a 32-VFQFN Exposed Pad package with a Surface Mount, Wettable Flank mounting type. It operates within a voltage range of 2.7V to 3.6V and has an operating temperature range of -40°C to 105°C.



Key applications include industrial control, consumer electronics, automotive systems, medical devices, and communication systems. NXP Semiconductors offers development tools such as CodeWarrior Development Studio to support the design process.

MC56F82743VFM Quick Information

Product Type: Microcontroller
Canonical Name: MC56F82743VFM Microcontroller
Subcategory: Microcontrollers

MC56F82743VFM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC56F82743VFM Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC56F82743VFM Features

  • 32-bit 56800EX core processor
  • Up to 100MHz core frequency
  • 64KB Flash program memory
  • 4KB RAM
  • 6x12-bit ADC and 2x12-bit DAC

MC56F82743VFM Applications

  • Ideal for industrial control systems
  • Suitable for consumer electronics
  • Applicable in automotive systems
  • Used in medical devices
  • Effective in communication systems

MC56F82743VFM FAQs

7 frequently asked questions generated from this part’s specifications.
What is the core processor of the MC56F82743VFM?

The MC56F82743VFM features a 32-bit 56800EX core processor.

What is the operating speed of the MC56F82743VFM?

The MC56F82743VFM operates at a speed of up to 100MHz.

How much Flash memory does the MC56F82743VFM have?

The MC56F82743VFM has 64KB of Flash program memory.

What is the RAM size of the MC56F82743VFM?

The MC56F82743VFM has 4KB of RAM.

What are the data converter specifications for the MC56F82743VFM?

The MC56F82743VFM includes 6x12-bit ADCs and 2x12-bit DACs.

What is the operating voltage range for the MC56F82743VFM?

The MC56F82743VFM operates within a voltage range of 2.7V to 3.6V.

What is the operating temperature range of the MC56F82743VFM?

The operating temperature range for the MC56F82743VFM is -40°C to 105°C (TA).
