Mfr Part #:

MC20805B6W-SPTLY-V2

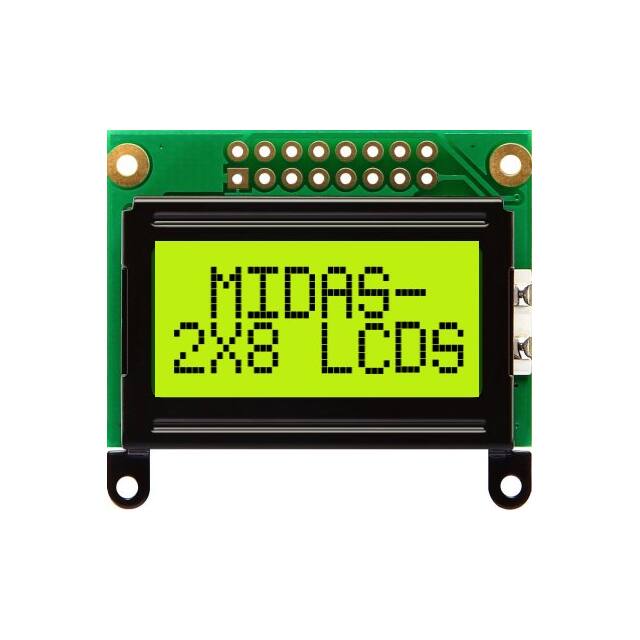

Name: MC20805B6W-SPTLY-V2
Brand: Midas Displays
SKU: MC20805B6W-SPTLY-V2

Mfr Name: Midas Displays

Description:

2X8 CHARACTER CHIP-ON-BOARD LCD,

Stock on Request

MC20805B6W-SPTLY-V2 Description

Short technical summary and product information.

2X8 CHARACTER CHIP-ON-BOARD LCD,

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Display Modules - LCD, OLED Character and Numeric
Manufacturer Name	Midas Displays
Background Color	Yellow/Green
Backlight	LED - Yellow/Green
Character Format	5 x 8 Dots
Character Size	4.75mm H x 2.95mm W
Controller Type	ST7066U
Display Format	8 x 2
Display Mode	Transflective
Display Type	STN - Super-Twisted Nematic
Dot Size	0.55mm W x 0.55mm H
Interface	Parallel
Number of Characters	16
Operating Temperature	-20°C ~ 70°C
Outline L x W x H	40.00mm x 35.40mm x 13.00mm
Text Color	Black
Viewing Area	30.40mm L x 13.90mm W
Voltage	5V
