| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-23 21:33:16 |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Input Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage |

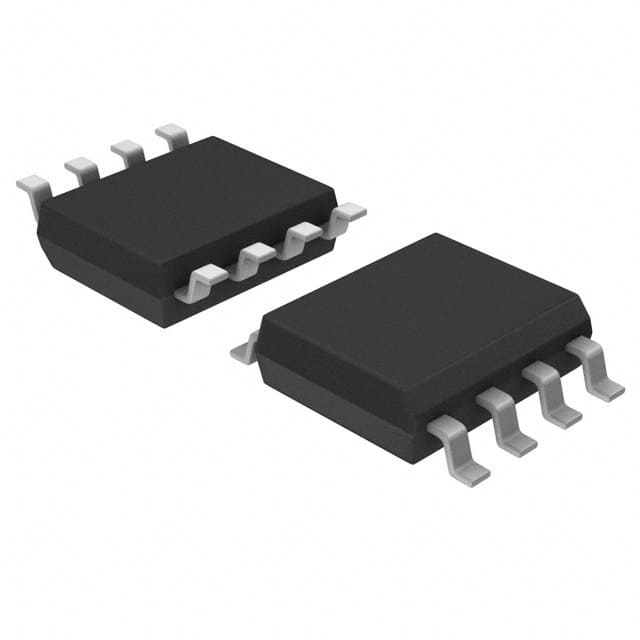

The MAX9320BESA+ is an integrated circuit from Analog Devices Inc./Maxim Integrated, categorized as a Clock Fanout Buffer and Driver. This component is designed to distribute clock signals efficiently, supporting a maximum frequency of 3 GHz.
Key electrical specifications include a supply voltage range of 3V to 5.5V and an operating temperature range of -40°C to 85°C. It features differential input and output capabilities, supporting ECL, PECL, LVECL, and LVPECL signal types. The buffer provides a 1:2 ratio for input to output signals, with one circuit integrated per device.
The MAX9320BESA+ is supplied in an 8-SOIC surface-mount package, measuring 0.154 inches (3.90mm) in width. Its RoHS status is ROHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3V to 5.5V.
-40°C to 85°C.
8-SOIC (0.154" | 3.90mm Width) surface mount package.
3 GHz.
ECL, PECL, LVECL, and LVPECL.
Yes, both inputs and outputs are differential.
1:2.
