| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating (Maximum @ All T-contacts, 25 °C ambient) | |
| Current Rating (Maximum @ All contacts, 25 °C ambient) | |
| Current Rating (Maximum @ All contacts, 85 °C ambient) | |
| Current Rating (Maximum @ One T-contact per connector, 25 °C ambient) | |
| Current Rating (Maximum @ One T-contact per connector, 85 °C ambient) | |
| Current Rating (Maximum @ One contact per connector, 25 °C ambient) | |
| Current Rating (Maximum @ One contact per connector, 85 °C ambient) | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing |

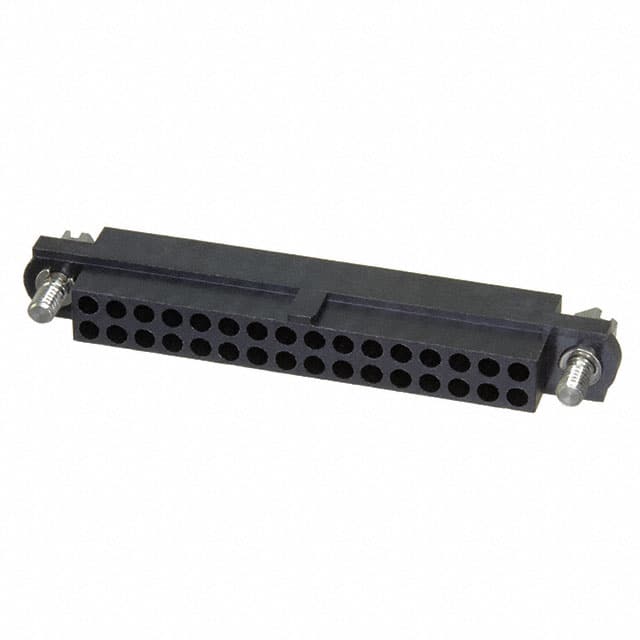

The M80-4143298 is a 32 position (16+16) female receptacle housing from the Datamate J-Tek series by Harwin Inc. It features a 2.00mm pitch and double row configuration with screw lock fastening (hex socket jackscrews). The housing is black in color and designed for free hanging (in-line) mounting.
Key specifications include a maximum current rating of 3.3A per signal contact at 25°C ambient (one contact) and 3.0A when all contacts are powered. The operating temperature range is -55°C to 125°C. The housing includes a mating flange and polarizing key for correct alignment. Contact termination is crimp, and the housing is intended for use with female socket contacts.
This connector is part of Harwin's high-reliability Datamate range, suitable for low voltage applications in high packing density electronic equipment. The jackscrew (J-Tek) version provides secure mating. The housing is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.23 | $8.23 |
| 10+ | $6.99 | $6.99 |
| 25+ | $6.55 | $6.55 |
| 50+ | $6.24 | $6.24 |
| 100+ | $5.94 | $5.94 |
| 250+ | $5.57 | $5.57 |
| 500+ | $5.31 | $5.31 |
| 1,000+ | $5.05 | $5.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 positions (16+16) arranged in 2 rows.
2.00mm (0.079 inches).
Maximum 3.3A per signal contact at 25°C ambient with one contact powered, and 3.0A when all contacts are powered.
Free hanging (in-line) mounting.
Screw lock with hex socket jackscrews (2mm A/F hex key).
-55°C to 125°C.
Female socket contacts with crimp termination.
