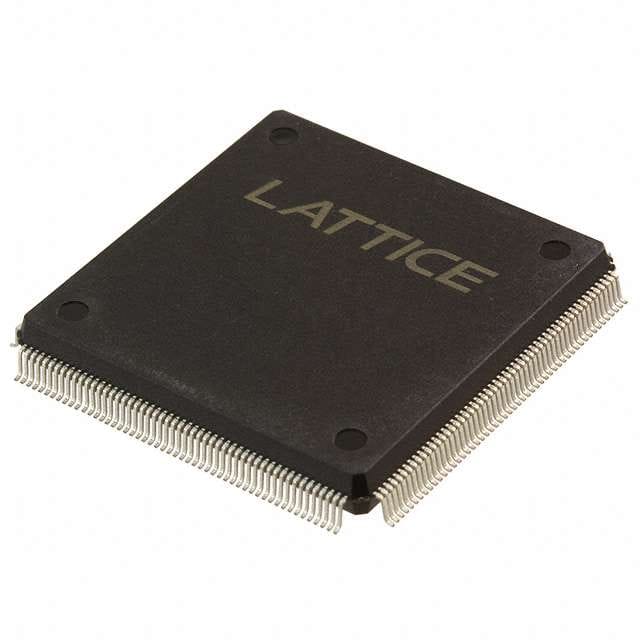

The Lattice Semiconductor Corporation M4A5-256/128-7YNC is a Complex Programmable Logic Device (CPLD) from the ispMACH 4A series. This component features 256 macrocells and 128 input/output pins, designed for system-level integration.
Key electrical characteristics include a maximum operating frequency of 154 MHz and a maximum propagation delay of 7.5 ns. The device operates within a supply voltage range of 4.75V to 5.25V, with a nominal voltage of 5V. It utilizes EEPROM technology for its memory.
The operating temperature range for this CPLD is 0°C to 70°C (TA). It is supplied in a Surface Mount package, specifically a Quad FP-128 (208-BFQFP), and comes in a Tray packaging format.
This CPLD is suitable for various embedded applications requiring programmable logic functionality.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M4A5-256/128-7YNC has 256 macrocells.
The M4A5-256/128-7YNC has 128 I/Os.
The maximum propagation delay for the M4A5-256/128-7YNC is 7.5 ns.
The M4A5-256/128-7YNC operates with a supply voltage between 4.75V and 5.25V.
The operating temperature range for the M4A5-256/128-7YNC is 0°C to 70°C.
The M4A5-256/128-7YNC is supplied in a Quad FP-128 package.
