| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | 1106 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time | |
| Delay Time tpd(1) Max | |
| Height | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Propagation Delay (Max) | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage Supply | |
| Width |

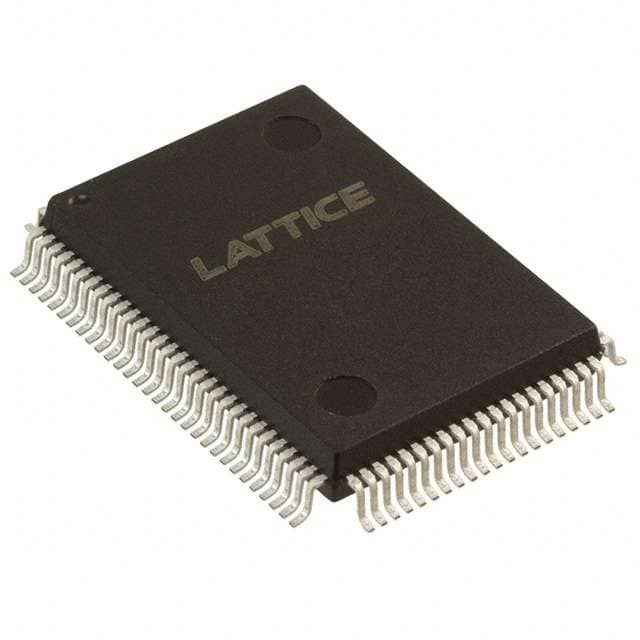

The Lattice M4A5-128/64-10YNC is a high-performance E2CMOS PLD from the Ispmach 4A series. This Complex Programmable Logic Device offers 128 macrocells and 64 input/output pins, making it suitable for various digital logic applications.
Key electrical specifications include a maximum operating frequency of 125 MHz and a propagation delay of 10 ns. The device operates within a supply voltage range of 4.75V to 5.25V. It is designed for in-system programmability.
This CPLD is packaged in a 100-PQFP (14x20) format and is designed for surface mounting (Smd/Smt). The operating temperature range is from 0°C to 70°C, and it comes in a tray package with a factory pack quantity of 66 units.
The M4A5-128/64-10YNC has 5000 gates and 20 product terms per macrocell, providing flexibility for complex logic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage is 5V, with a minimum of 4.75V and a maximum of 5.25V.
The package is a 100-PQFP (14x20) designed for surface mounting.
The device operates between 0°C and 70°C.
The maximum propagation delay is 10 ns.
It features 128 macrocells.
The device has 64 input/output pins.
