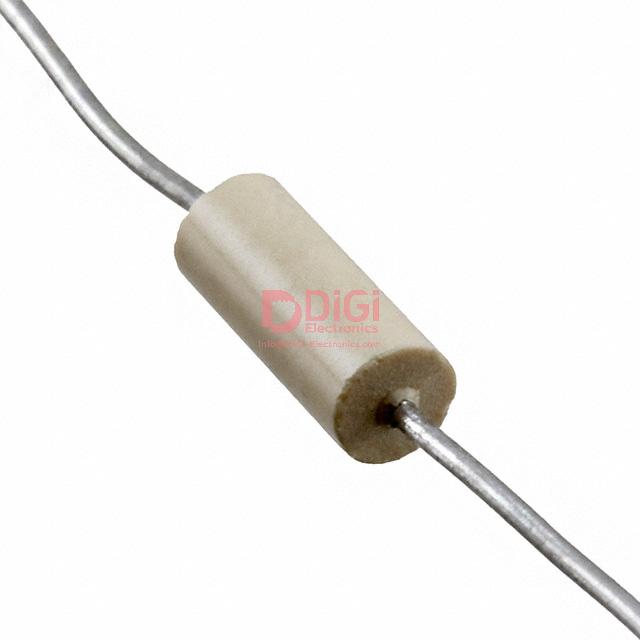

M39010/09-A150KR The API Delevan Inc. ER1025-48KR is a fixed inductor with 15 µH inductance and a current rating of 150 mA. It features through-hole mounting and an axial package.
Mfr Part #:

M39010/09-A150KR

Available from 2 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
The API Delevan Inc. ER1025-48KR is a fixed inductor with 15 µH inductance and a current rating of 150 mA. It features through-hole mounting and an axial package.
✓ Total Stock: 215 pcs
$ Price Range: $0.20

M39010/09-A150KR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
140 pcs
On Request
140 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
75 pcs
On Request
75 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M39010/09-A150KR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Material
Current Rating
DC Resistance (DCR)
Failure Rate
Inductance
Mounting Type
Operating Temperature
Self Resonant Frequency
Shielding
Tape & Reel
Tolerance
View Similar Products (0)

M39010/09-A150KR Description

Short technical summary and product information.

The API Delevan Inc. ER1025-48KR is an unshielded fixed inductor designed for through-hole mounting. It offers an inductance value of 15 µH with a tolerance of ±10% and a maximum DC resistance of 2.8 Ohms.



This inductor has a current rating of 150 mA and a Q factor of 40 at 2.5 MHz. It operates within a temperature range of -55°C to 105°C and has a self-resonant frequency of 35 MHz. The component is housed in an axial package with dimensions of 0.095" Dia x 0.250" L (2.41mm x 6.35mm).



The series is ER1025, and the product status is active. It is supplied on tape and reel.

M39010/09-A150KR Quick Information

Product Type: Fixed Inductor
Series: ER1025
Canonical Name: API Delevan Inc. ER1025-48KR Fixed Inductor
Subcategory: Fixed Inductors

M39010/09-A150KR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M39010/09-A150KR Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

M39010/09-A150KR Features

  • 15 µH inductance with ±10% tolerance.
  • Rated for 150 mA current.
  • 2.8 Ohm maximum DC resistance.
  • Operates from -55°C to 105°C.
  • Through hole mounting, axial package.

M39010/09-A150KR Applications

  • Suitable for RF filtering applications.
  • Used in power supply filtering circuits.
  • Ideal for high-frequency circuit design.
  • Applicable in military and aerospace electronics.

M39010/09-A150KR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the ER1025-48KR?

The inductance is 15 µH.

What is the current rating for the ER1025-48KR?

The current rating is 150 mA.

What is the maximum DC resistance (DCR) of this inductor?

The maximum DC resistance is 2.8 Ohms.

What is the self-resonant frequency of the ER1025-48KR?

The self-resonant frequency is 35 MHz.

What type of mounting does the ER1025-48KR use?

It uses through hole mounting.

What are the operating temperature limits for this inductor?

The operating temperature range is -55°C to 105°C.
