| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
728 pcs
|
728 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Material | |
| Contact Resistance | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Termination Style |

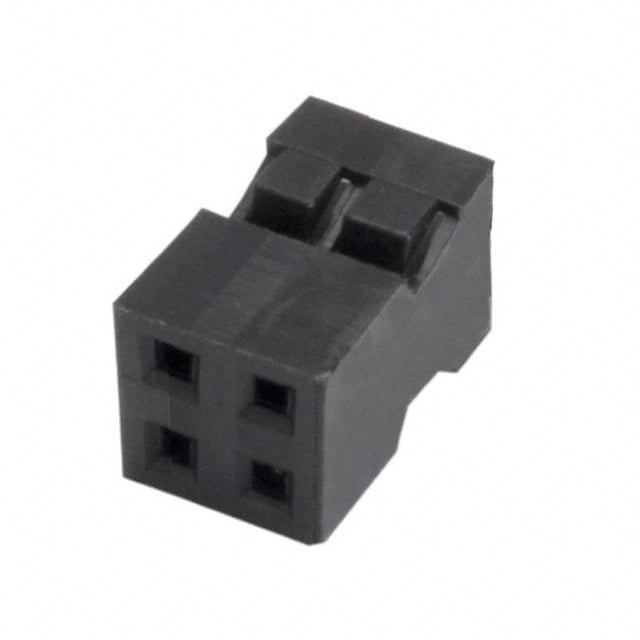

The M22-3020200 from Harwin Inc. is a 4-position (2+2) female receptacle housing part of the M22 series of 2.00mm pitch connectors. It features two rows and is designed for free hanging (in-line) mounting with crimp termination using reeled crimp contacts M22-3040042/M22-3040046 or loose contacts M22-3050042/M22-3050046. The housing is made of high temperature thermoplastic rated UL94V-0 and contacts are copper alloy.
Electrically, the connector is rated for 1A maximum current per contact with a contact resistance of 20 milliohms maximum. It can withstand 500V AC/DC for 1 minute dielectric strength and has a minimum insulation resistance of 1,000 megohms. The operating temperature range is -25°C to 85°C.
This housing is suitable for wire-to-board or cable-to-board interconnections in compact electronic assemblies. The 2.00mm pitch and dual-row configuration allow for dense signal routing. The crimp termination provides reliable wire connections and field serviceability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.44 | $0.44 |
| 10+ | $0.38 | $0.38 |
| 25+ | $0.34 | $0.34 |
| 100+ | $0.32 | $0.32 |
| 250+ | $0.29 | $0.29 |
| 1,000+ | $0.28 | $0.28 |
| 3,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions (2+2) in 2 rows.
2.00mm (0.079 inches).
1A maximum per contact.
Free hanging (in-line) mounting.
-25°C to 85°C.
500V AC/DC for 1 minute.
20 milliohms maximum.
