M2022SS1W40 The NKK Switches M2022SS1W40 is a DPDT toggle switch designed for panel mounting. It features a 6A AC / 4A DC current rating and 30V voltage rating.
Mfr Part #:

M2022SS1W40

Available from 1 distributors
Mfr Name: NKK Switches
NKK Switches
The NKK Switches M2022SS1W40 is a DPDT toggle switch designed for panel mounting. It features a 6A AC / 4A DC current rating and 30V voltage rating.
✓ Total Stock: 110 pcs
$ Price Range: $0.75

M2022SS1W40 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
110 pcs
On Request
110 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M2022SS1W40 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Bushing Thread
Circuit
Current Rating (Amps)
Features
Illumination
Lead Style
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

M2022SS1W40 Description

Short technical summary and product information.

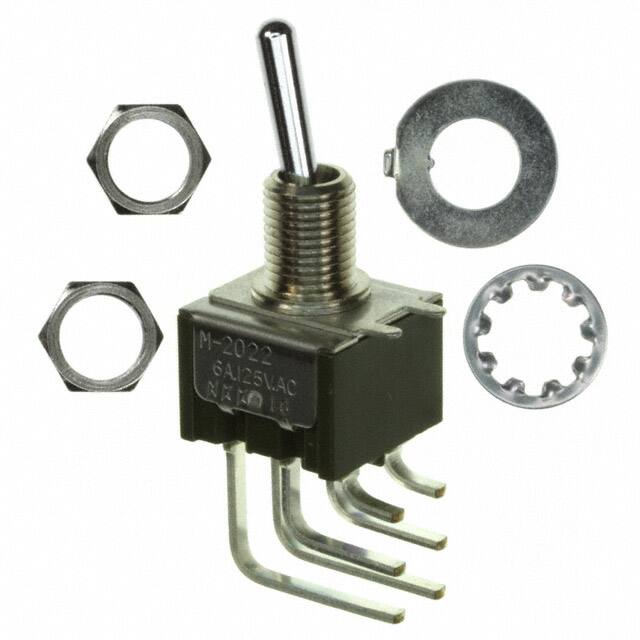

The NKK Switches M2022SS1W40 is a DPDT (Double Pole, Double Throw) toggle switch suitable for various applications. It is rated for 6A at 125V AC and 4A at 30V DC, with a maximum operating voltage of 30V.



This toggle switch features a panel mount design with a right-angle, vertical orientation and a standard round actuator. The termination style is PC Pin, and it includes epoxy sealed terminals for added durability. The bushing thread is 1/4-40, and the panel cutout diameter is circular at 6.50mm.



Operating within a temperature range of -30°C to 85°C, the M2022SS1W40 is non-illuminated. Its compact design and robust construction make it a reliable choice for control and switching functions in electronic equipment.

M2022SS1W40 Quick Information

Product Type: Toggle Switch
Series: M2022
Canonical Name: NKK Switches M2022SS1W40 DPDT Toggle Switch
Subcategory: DPDT

M2022SS1W40 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M2022SS1W40 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

M2022SS1W40 Features

  • DPDT toggle switch with On-On function.
  • Rated for 6A AC and 4A DC current.
  • Features panel mount, right-angle termination.
  • Includes epoxy sealed terminals for protection.
  • Operates from -30°C to 85°C.

M2022SS1W40 Applications

  • Used for general purpose switching.
  • Suitable for control panel applications.
  • Ideal for equipment with limited space.
  • Reliable for intermittent duty cycles.

M2022SS1W40 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the M2022SS1W40 toggle switch?

The M2022SS1W40 toggle switch has a voltage rating of 30V.

What is the current rating for the M2022SS1W40?

The current rating is 6A for AC and 4A for DC.

What is the operating temperature range for this toggle switch?

The operating temperature range is -30°C to 85°C.

How is the M2022SS1W40 toggle switch mounted?

It is designed for panel mounting with a right-angle, vertical orientation.

What type of termination does the M2022SS1W40 use?

The termination style is PC Pin.

Does the M2022SS1W40 have RoHS compliance?

The product is listed as RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the M2022SS1W40?

The Moisture Sensitivity Level is 1 Unlimited.
