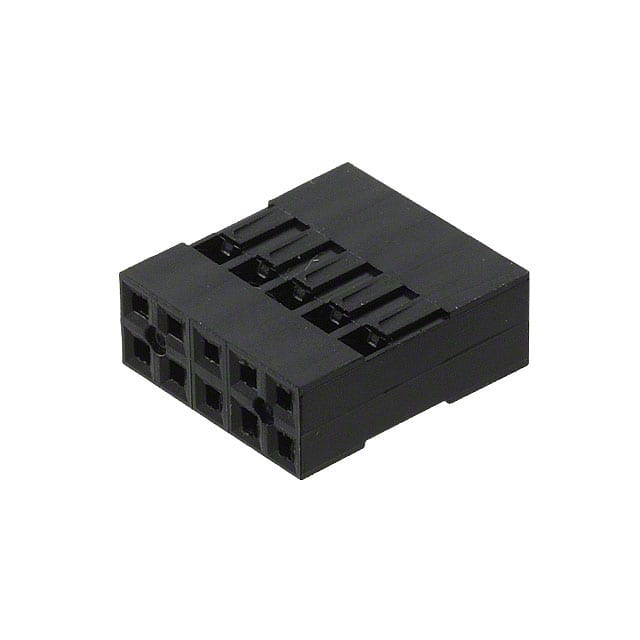

The Harwin M20-1070500 is a 10 position receptacle housing from the M20 series of 2.54mm pitch connectors. It accepts female socket crimp contacts and is designed for free hanging (in-line) wire-to-board or wire-to-wire applications. The housing is made from high temperature thermoplastic with a UL94V-0 flammability rating and is black in color.
The connector has two rows with a row spacing of 2.54mm (0.100"). Each contact is rated for 3A maximum current with an initial contact resistance of 20mΩ max. The operating temperature range is -25°C to 85°C. This housing is suitable for use with Harwin M20 series crimp contacts and mating pin headers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.36 | $0.36 |
| 25+ | $0.32 | $0.32 |
| 100+ | $0.31 | $0.31 |
| 250+ | $0.27 | $0.27 |
| 1,000+ | $0.25 | $0.25 |
| 3,000+ | $0.24 | $0.24 |
| 5,000+ | $0.24 | $0.24 |
| 10,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M20-1070500 has 10 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").
The current rating is 3A maximum per contact.
The operating temperature range is -25°C to 85°C.
The mounting style is free hanging (in-line).
The contact termination is crimp.
The housing is made of high temperature thermoplastic rated UL94V-0.
