| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating (Per Contact) | |
| Dielectric Withstanding Voltage | |
| Insulation Resistance | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Termination Style |

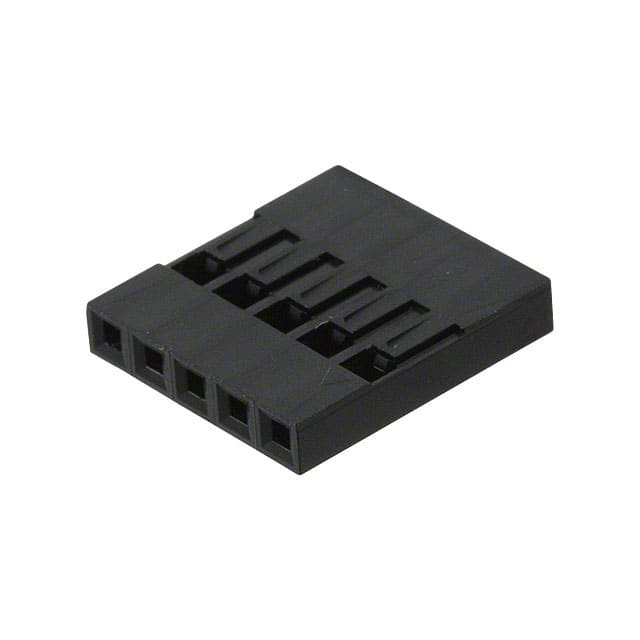

The Harwin M20-1060500 is a 5-position single row female receptacle cable housing from the M20 series. Designed for 2.54mm (0.1") pitch applications, it accepts female socket crimp contacts (sold separately). The housing features a free hanging (in-line) mounting style with crimp termination. It is rated for 3A maximum current per contact and operates over -25°C to 85°C. Initial contact resistance is 20mΩ maximum, and dielectric withstanding voltage is 800V AC minimum. Insulation resistance is 1000MΩ minimum. The housing is black and RoHS3 compliant (unverified). Applications include board-to-wire and board-to-board interconnections where a reliable, low-cost connector is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.24 | $0.24 |
| 10+ | $0.21 | $0.21 |
| 25+ | $0.18 | $0.18 |
| 100+ | $0.18 | $0.18 |
| 250+ | $0.16 | $0.16 |
| 1,000+ | $0.14 | $0.14 |
| 3,000+ | $0.14 | $0.14 |
| 10,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 5 positions in a single row.
The pitch is 2.54mm (0.100").
The maximum current rating is 3A per contact.
It is designed for free hanging (in-line) mounting.
It operates from -25°C to 85°C.
It uses crimp termination with separate female socket contacts.
