| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
68 pcs
|
68 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attenuation Value | |
| Capacitance | |
| Current | |
| ESD Protection | |
| Filter Order | |
| Lead Style | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Tape & Reel | |
| Technology | |
| Type | |
| Values | |
| Voltage |

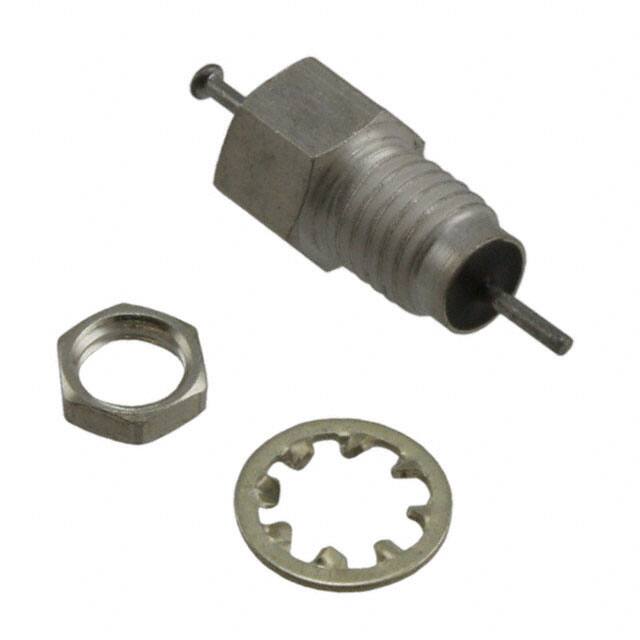

This CTS-Frequency Controls M15733/61-0002 is an LC (Pi) type low pass filter. It is designed for chassis mounting and features a capacitance value of 1500pF. The filter is rated for operation up to 200V and can handle a current of 10A.
With an operating temperature range of -55°C to 125°C, this filter provides reliable performance in various environmental conditions. It offers an attenuation of 70dB at frequencies between 1GHz and 10GHz and has a 3rd order filter design. The component has a single channel and does not include ESD protection.
The physical dimensions are 0.250" in diameter and 0.470" in length (6.35mm x 11.95mm). The package style is axial with a bushing and one turret lead, suitable for chassis mount applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-55°C to 125°C.
1500pF.
200V.
LC (Pi) topology.
RoHS3 compliant.
