| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,410 pcs
|
2410 pcs | On Request | 1 | On Request | On Request | 2018+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Output Current | |
| Package / Case | |
| Quiescent Current | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel |

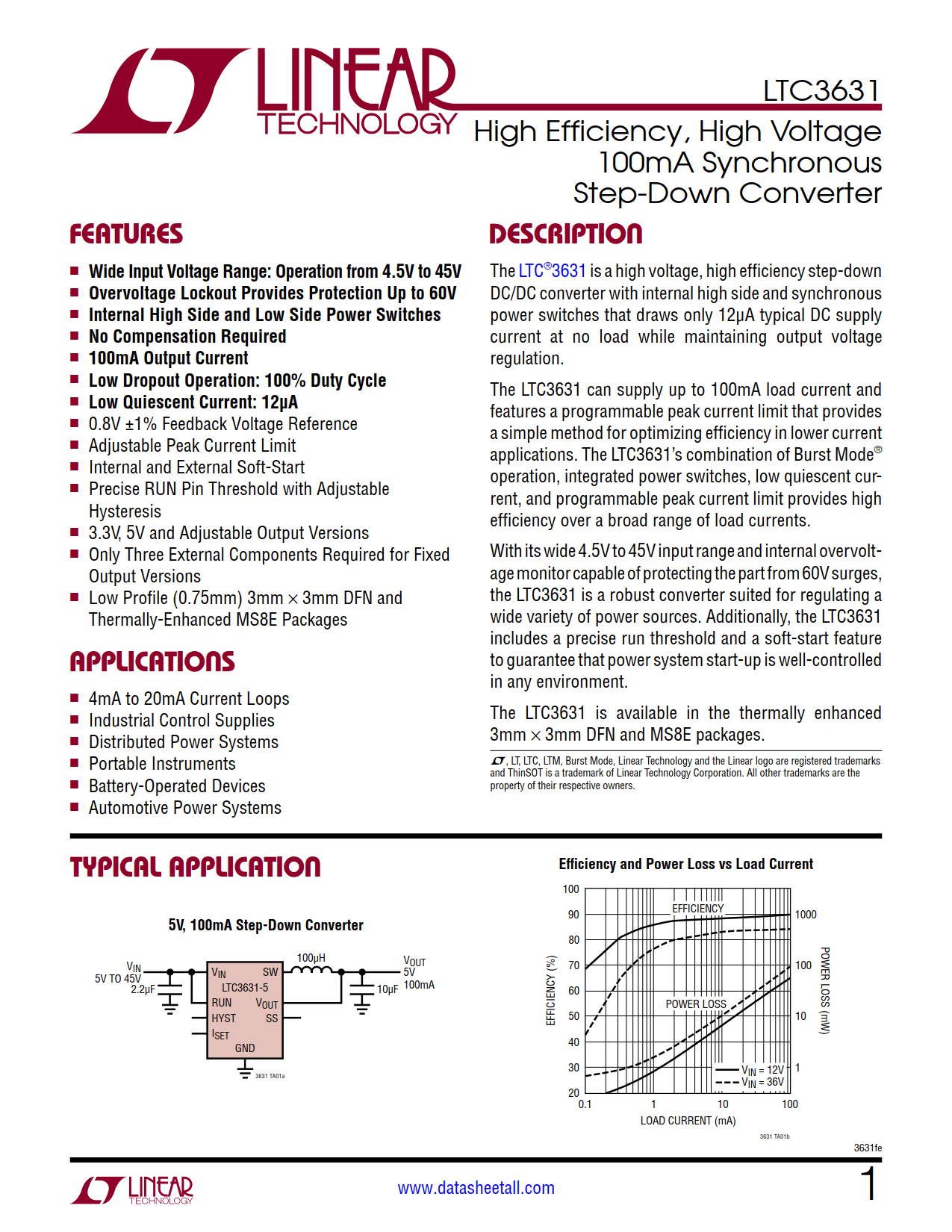

The LTC3631EDD-5#TRPBF from ADI Electronics is a high voltage, high efficiency step-down DC-DC converter. It features internal high-side and synchronous power switches, drawing a low 12μA typical DC supply current at no load while maintaining output voltage regulation.
This converter can supply up to 100mA of load current and includes a programmable peak current limit for optimizing efficiency in lower current applications. Its combination of Burst Mode operation, integrated power switches, low quiescent current, and programmable peak current limit provides high efficiency over a broad range of load currents.
The device operates from a wide 4.5V to 45V input range, with overvoltage lockout providing protection up to 60V. It requires minimal external components for fixed output versions and is available in low-profile DFN and thermally-enhanced MS8E packages.
Applications for the LTC3631EDD-5#TRPBF include industrial control supplies, distributed power systems, portable instruments, battery-operated devices, and automotive power systems.
The input voltage range is from 4.5V to 45V.
The LTC3631EDD-5#TRPBF can supply up to 100mA of output current.
The quiescent current is typically 12μA.
The feedback voltage reference is 0.8V with ±1% accuracy.
The operating temperature range is -40°C to 125°C.
The LTC3631 is available in 8-Lead DFN and 8-Lead MSOP-EP packages.
