| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,796 pcs
|
2796 pcs | On Request | 1 | On Request | On Request | 1922+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

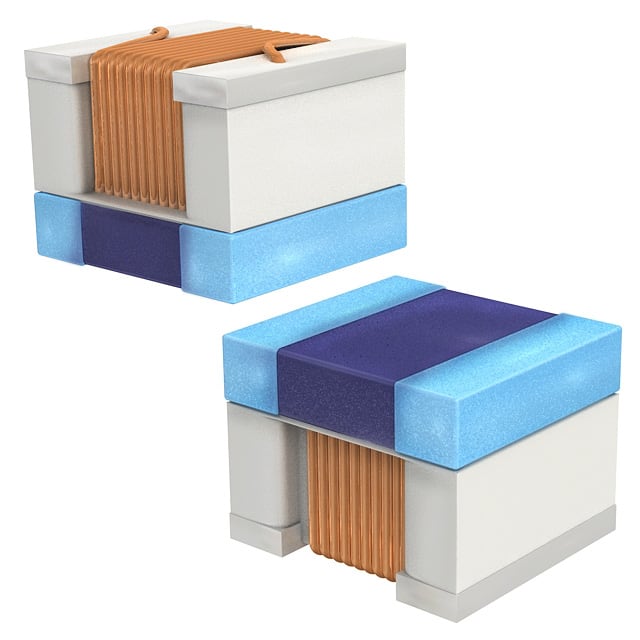

This Murata LQW2UAS1R2J0CL is a fixed inductor from the LQW2UAS series, designed for surface mount applications. It offers a nominal inductance of 1.2µH with a tolerance of ±5% and a rated current of 310mA.
The inductor has a maximum DC resistance of 2 Ohms and a minimum Q factor of 35 at 50MHz. Its self-resonant frequency is 210MHz, operating within a temperature range of -40°C to +85°C. The component is constructed with a non-magnetic core and is unshielded.
Packaged in a 1008 (2520 Metric) case, this surface mount inductor is suitable for automated assembly processes. Its dimensions are 2.62mm in length, 2.45mm in width, and 2.03mm in height. The product is RoHS3 compliant and has an MSL rating of 1.
This fixed inductor is suitable for various electronic equipment applications, including consumer, industrial, and certain medical equipment, where its electrical characteristics and compact size are beneficial.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 1.2 µH.
The maximum current rating is 310 mA.
The maximum DC resistance is 2 Ohm.
The self-resonant frequency is 210 MHz.
It is supplied in a 1008 (2520 Metric) package.
