| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
88,888 pcs
|
88888 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Ratings | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width | |
| inductance (Nominal @ 25 MHz) |

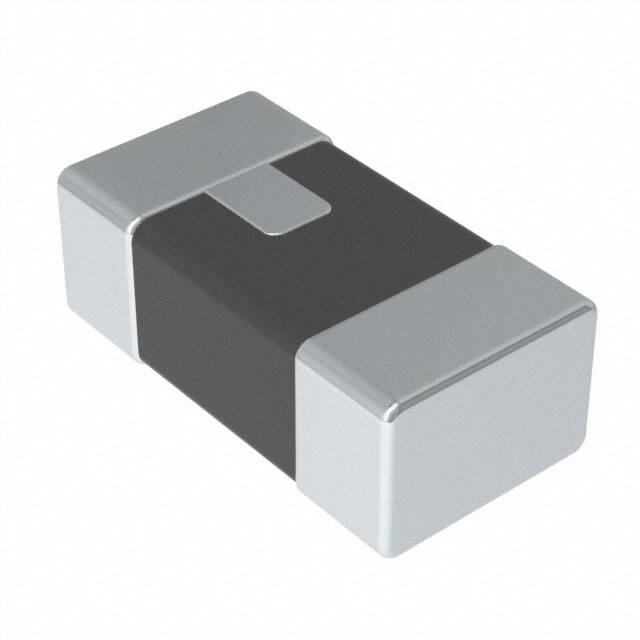

This Murata LQM18JNR16J00D is a multilayer chip inductor from the LQM18JN series. It offers a nominal inductance of 160nH with a tolerance of ±5% and a Q factor of 8 at 25MHz. The DC resistance is a maximum of 600mOhm, and it has a current rating of 550mA.
The inductor operates within a temperature range of -40°C to +85°C and features a shielded construction. It is rated AEC-Q200, indicating suitability for automotive applications. The component is housed in a compact 0603 (1608 Metric) package, designed for surface mounting.
This chip inductor is suitable for various applications including power equipment, industrial equipment, medical equipment, and consumer electronics. Its specifications make it a reliable choice for filtering and energy storage circuits where space is a constraint.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the LQM18JNR16J00D is 160 nH.
The current rating for the LQM18JNR16J00D is 550 mA.
The DC resistance (DCR) of the LQM18JNR16J00D is 600mOhm.
The self-resonant frequency of the LQM18JNR16J00D is 100MHz.
The LQM18JNR16J00D is available in the 0603 (1608 Metric) package size.
