| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
452,000 pcs
|
452000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Style | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

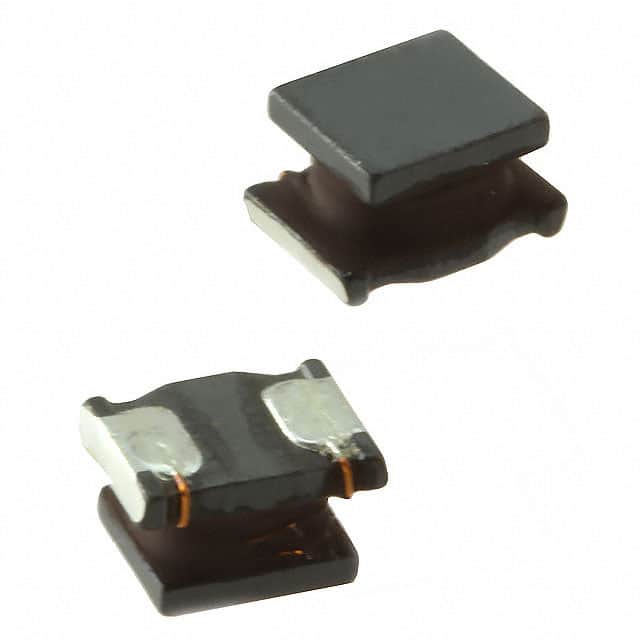

The Murata LQH43MN820J03L is a fixed inductor from the LQH43MN series, designed for consumer and industrial equipment. It features a wirewound drum core construction and is suitable for surface mounting in an 1812 package.
Key electrical specifications include an inductance of 82µH with a tolerance of ±5%, a maximum DC resistance of 2.2 Ohms, and a rated current of 170mA. The inductor operates within a temperature range of -40°C to 85°C and has a self-resonant frequency of 7.5 MHz.
This component is designed for applications where reliable inductance is required. Its surface mountable nature and compact size make it suitable for integration into various electronic circuits. The ferrite core material contributes to its performance characteristics.
Specific applications mentioned for the LQH43MN series include power equipment, industrial equipment, and consumer electronics, provided their functions are not directly related to the protection of human life and property.
The inductance is 82 µH.
The maximum current rating is 170 mA.
The maximum DC Resistance is 2.2 Ohm.
The operating temperature range is -40°C to 85°C.
It is available in an 1812 package.
