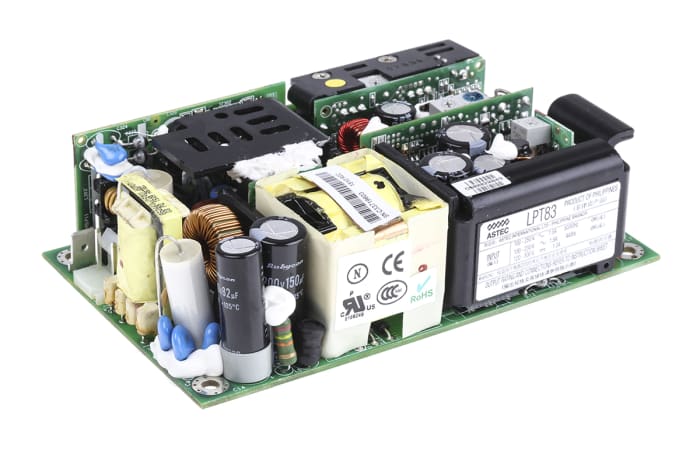

The Artesyn Embedded Technologies LPT83 is a versatile AC/DC converter designed for ITE (Commercial) applications. This open frame unit delivers a total power of 60W, with a maximum of 85W available with forced air cooling. It features a triple output configuration providing +5V, +15V, and -15V.
The LPT83 operates with a universal input voltage range of 85-264 VAC or 120-370 VDC, and a frequency range of 47-440 Hz. Key electrical specifications include an efficiency of 75% at full load and a hold-up time of 20ms. Protection features include overload and overvoltage protection.
With a compact footprint measuring 127mm x 76.2mm x 32.8mm, this converter is suitable for chassis mounting. The operating temperature range is 0°C to 70°C with derating. It also includes features like Power Factor Correction (PFC), remote sense, and remote inhibit for enhanced control and system integration.
The LPT83 provides three outputs: +5V, +15V, and -15V.
The LPT83 has a maximum power rating of 60W with convection cooling, and 85W with 30 CFM forced air.
The LPT83 accepts an input voltage range of 85-264 VAC or 120-370 VDC.
The LPT83 operates within a temperature range of 0°C to 70°C, with derating applied above 50°C.
The LPT83 measures 127.0mm in length, 76.2mm in width, and 32.8mm in height.
The LPT83 is RoHS3 Compliant.
