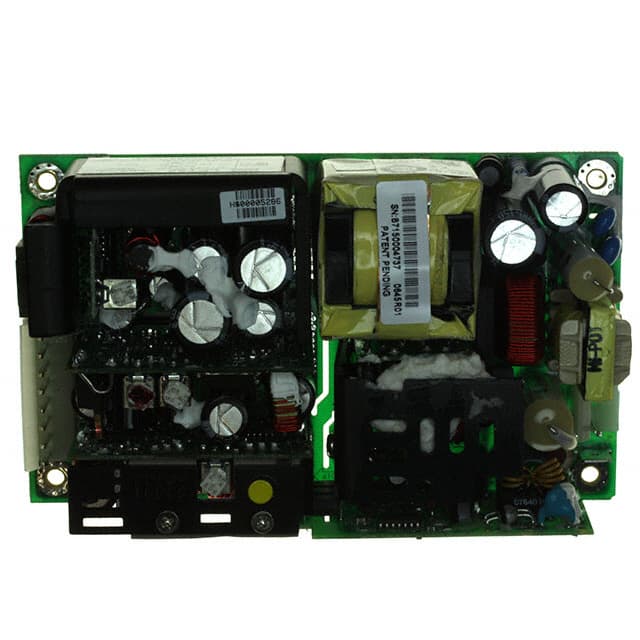

The Artesyn Embedded Technologies LPT82 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It provides a total output power of 60W, with a maximum of 85W available under forced air cooling.
The converter features a triple output configuration with voltages of +5V (adjustable 3.3-5.5V), +12V, and -12V. Key electrical specifications include an input voltage range of 85-264 VAC, a frequency range of 47-440 Hz, and a typical efficiency of 75% at full load. It includes features such as Power Factor Correction (PFC), remote sense, remote inhibit, and overvoltage/overload protection.
With a compact footprint, the LPT82 measures 127.0mm x 76.2mm x 32.8mm and is designed for chassis mounting. The operating temperature range is 0°C to 70°C with derating. Safety approvals include CB and CE certifications.
The LPT82 provides three outputs: +5V (adjustable 3.3-5.5V), +12V, and -12V.
The LPT82 has a maximum power output of 60W with convection cooling and 85W with 30 CFM forced air.
The LPT82 accepts a universal input voltage range of 85-264 VAC.
The LPT82 operates from 0°C to 70°C with derating.
The LPT82 measures 127.0mm in length, 76.2mm in width, and 32.8mm in height.
