| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
356 pcs
|
356 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage 3 | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

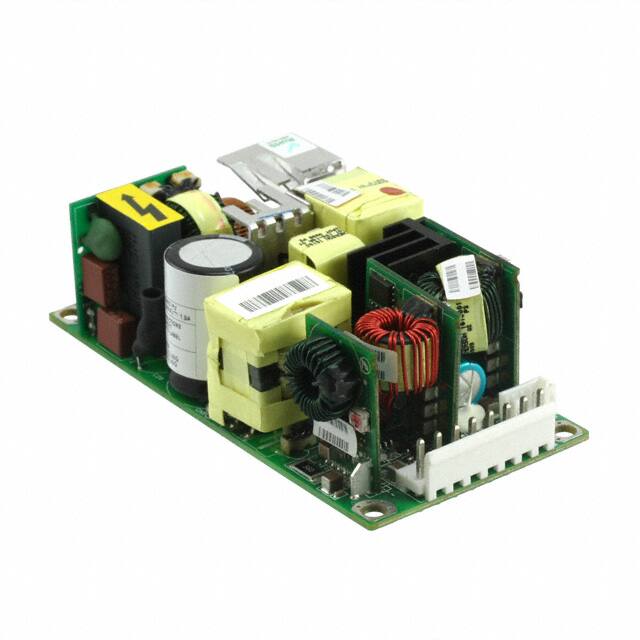

The Artesyn Embedded Power LPT102-M is a triple output open frame AC-DC converter from the LPT100-M series. It delivers 5V, 12V, and -12V outputs with a total continuous power of 80W, expandable to 130W with forced air cooling. The unit operates from a universal input range of 90-264 Vac and offers a typical efficiency of 82%.
This converter includes active power factor correction, remote sense, and overload and overvoltage protection. It features a low profile 2" x 4" footprint with a height of 1.28 inches, enabling use in space-constrained applications. The LPT102-M is approved for both ITE (commercial) and medical applications, holding safety certifications from TUV, UL, CSA, NEMKO, and others.
The power supply supports chassis mount installation and operates over a temperature range of 0°C to 70°C with derating. EMI/RFI emissions meet FCC Class B and CISPR22 Class B standards. Built-in protections include short circuit and thermal overload.
The operating temperature range is 0°C to 70°C with derating.
RoHS3 compliance is indicated but unverified.
The outputs are 5V, 12V, and -12V.
The input voltage range is 90-264 Vac.
