| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

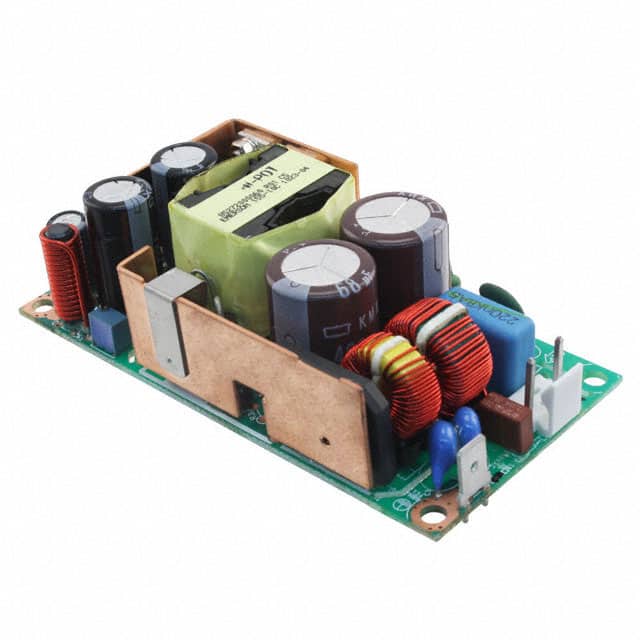

The Artesyn Embedded Power LPS58 is an AC/DC converter designed for commercial ITE applications. This open frame unit delivers 60W of power with a single 48V DC output at 1.25A. It operates with a wide input voltage range of 90 to 264 VAC and boasts an efficiency of 85%.
Key features include adjustable output, DC input capability, remote sense, and universal input. The converter is designed for chassis mounting and operates within a temperature range of 0°C to 70°C with derating. Its dimensions are 101.6mm x 50.8mm x 33.0mm.
This series, LPS50 (60W), is approved by CB and CE agencies, indicating compliance with international safety standards. The LPS58 is suitable for various industrial and commercial applications requiring a reliable power conversion solution.
The LPS58 accepts a universal AC input of 90 to 264 VAC.
The LPS58 is an open-frame converter designed for chassis mount.
The LPS58 operates from 0°C to 70°C with derating.
The LPS58 provides a single output of 48 VDC.
The LPS58 delivers 1.25 A at the 48V output.
The LPS58 is rated for 60 watts.
The LPS58 has a typical efficiency of 85%.
