| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Range | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

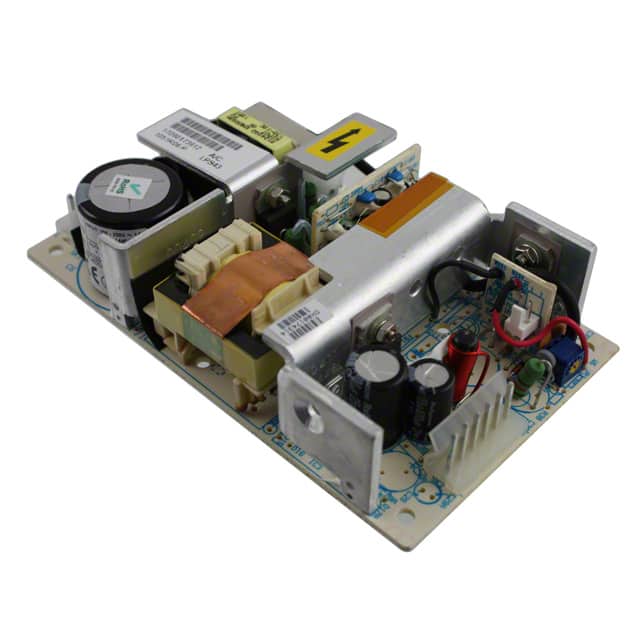

The Artesyn Embedded Power LPS40 series, including the LPS43 model, offers versatile AC/DC conversion with a total power output of 40W under convection cooling, expandable to 55W with forced air.
These open-frame power supplies accept a universal input voltage range of 85 to 264 VAC or 120 to 300 VDC, making them suitable for global applications. Key electrical specifications include an efficiency of 70% typical, overvoltage protection, and short-circuit protection on all outputs. The series also features remote sense capability to compensate for lead voltage drop.
Designed with a compact 3" x 5" footprint and a height of less than 1U, the LPS40 series is ideal for space-constrained applications. The mounting type is chassis mount, facilitating integration into various systems. Applications include medical, test and measurement, single-board computers, telecommunications, and networking equipment.
Environmental specifications include an operating temperature range of 0°C to 50°C ambient, with derating applied above 50°C. The power supplies meet various safety standards and are RoHS compliant.
The LPS43 accepts 85 to 264 VAC or 120 to 300 VDC.
The LPS43 delivers 40W with convection cooling and 55W with 30 CFM forced air.
The LPS43 operates from 0°C to 50°C ambient, with derating above 50°C and startup at -20°C.
Yes, the LPS43 includes remote sense that compensates for up to 0.5 V lead drop and is reverse connection protected.
The LPS43 includes short circuit protection on all outputs and overvoltage protection.
