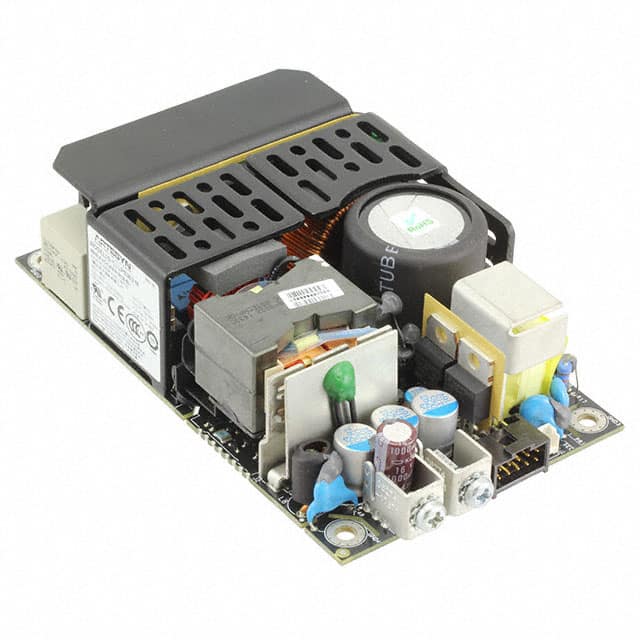

The Artesyn Embedded Power LPS360-M series, including the LPS363-M model, provides 360 Watt AC-DC power conversion. These open-frame power supplies are designed for versatility, accepting a universal input voltage range of 90-264 Vac or 120-300 Vdc.
Key electrical specifications include a maximum output power of 240W with convection cooling, which can be boosted to 360W with 400 LFM of forced air. The efficiency is rated up to 93% at full load, with a typical power factor of 0.99. The LPS363-M features a single output and offers adjustable output voltage ranges depending on the model, along with dedicated 5V standby and 12V fan outputs.
Designed for reliability, these power supplies incorporate comprehensive overcurrent, overvoltage, and overtemperature protection as standard. They also include features like remote sense, power fail signal, and an I2C interface for monitoring and control. The series meets ITE and medical safety approvals, making it suitable for patient contact Type BF medical applications as well as light industrial systems.
The LPS363-M has a compact 3" x 5" footprint and is less than 1U high, facilitating integration into space-constrained designs. Mounting is typically chassis mount.
The input voltage range is 90 to 264 VAC.
The maximum output power is 240W with convection cooling, and 360W with 400 LFM of forced air.
The efficiency is up to 93% at full load.
The operating temperature range is 0°C to 70°C with derating.
The dimensions are 127.0mm (5.00") L x 76.2mm (3.00") W x 34.8mm (1.37") H.
It has CB and CE approval.
Yes, it is RoHS3 Compliant.
