| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

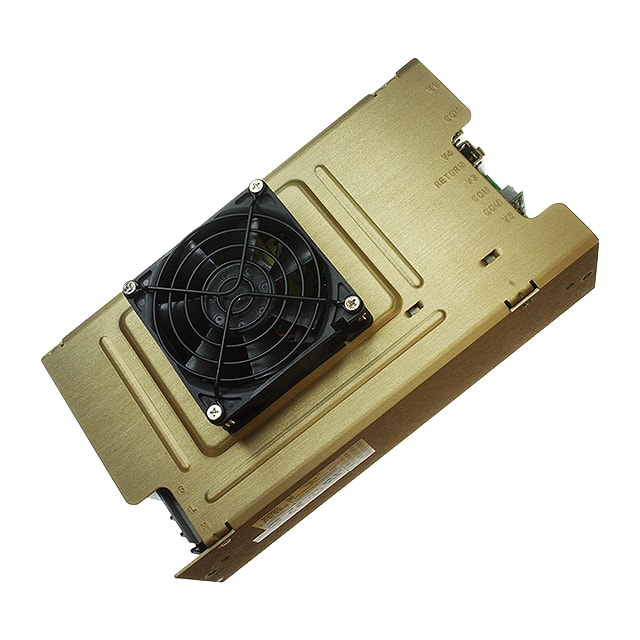

The Artesyn Embedded Technologies LPS355-CF is an enclosed AC/DC converter with a power rating of 350W and an output current of 14.6A. It operates with an input voltage range of 85 to 264 VAC and features an efficiency of 75%. This model is designed for chassis mounting and is suitable for ITE (Commercial) applications.
Key features include adjustable output, DC input capability, load sharing, power factor correction (PFC), remote sense, and a standby output. The operating temperature range is from 0°C to 70°C with derating. The unit has a single output and is approved by CB and CE.
Dimensions are 228.6mm in length, 127.0mm in width, and 63.5mm in height. The LPS355-CF is RoHS3 compliant, has an MSL of 1 (Unlimited), and is REACH unaffected.
The operating voltage range is 85 to 264 VAC.
The maximum output current is 14.6A.
The power rating is 350W.
It is designed for chassis mounting.
The operating temperature range is 0°C to 70°C, with derating.
The dimensions are 228.6mm (L) x 127.0mm (W) x 63.5mm (H).
