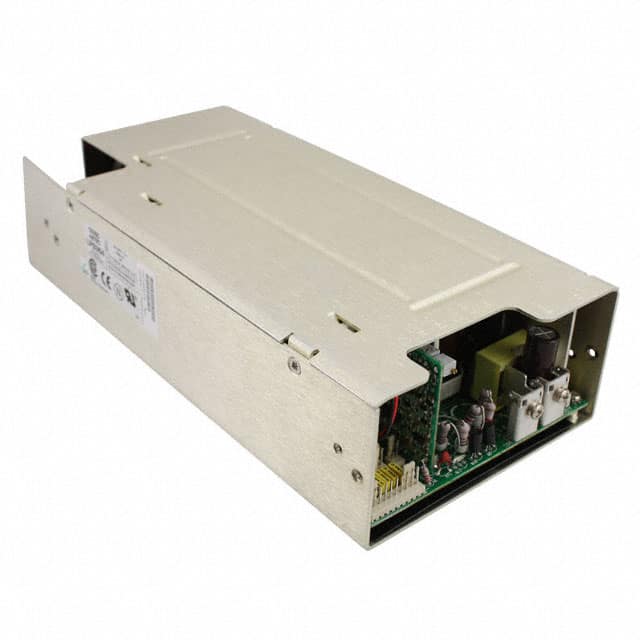

The Artesyn LPS354-CEF is a 350W enclosed switching power supply designed for ITE (Commercial) applications. It provides a single 15V dc output with a maximum current of 23.3A.
Key electrical specifications include a universal input voltage range of 85V ac to 264V ac and an efficiency of 75% typical at full load. The power supply offers features such as adjustable output, DC input capability, load sharing, active power factor correction (PFC), remote sensing, a standby output, and universal input.
Mechanically, this unit is designed for chassis mounting and has dimensions of 228.6mm in length, 127.0mm in width, and 63.5mm in height. It operates within a temperature range of 0°C to 70°C with derating.
Compliance is certified by agencies including CB and CE. The LPS354-CEF series is part of the LPS series from Artesyn Embedded Technologies.
The maximum output voltage is 15V dc.
It has a single output.
The mounting type is chassis mount.
The power rating is 350W.
The minimum operating temperature is 0°C.
The output current is 23.3A.
The maximum operating temperature is 50°C.
The dimensions are 273.8mm in length, 127mm in width, and 88.9mm in depth.
It is approved by cUL, CB, CSA, and CE.
The input voltage range is 85V ac to 300V dc.
The efficiency is 75%.
Features include adjustable output, DC input capability, load sharing, PFC, remote sense, standby output, and universal input.
It is suitable for ITE (Commercial) applications.
