| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

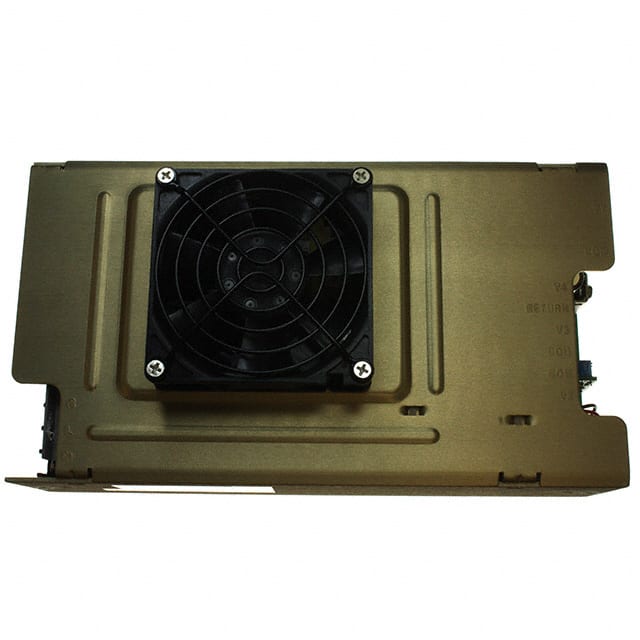

The Artesyn Embedded Power LPS352-CF is an enclosed AC DC converter designed for ITE (Commercial) applications. It operates with an input voltage range of 85 to 264 VAC and delivers a power output of 350W with a maximum current of 70A.
Key features include adjustable output, DC input capability, load sharing, power factor correction (PFC), remote sense, and a standby output. The converter has an efficiency of 75% and operates within a temperature range of 0°C to 70°C with derating. Its dimensions are 228.6mm in length, 127.0mm in width, and 63.5mm in height, with a chassis mount type.
This unit is approved by CB and CE, indicating compliance with relevant safety and electromagnetic compatibility standards. It is suitable for various commercial and industrial applications requiring a reliable power conversion solution.
The LPS352-CF provides a single 5V output at 70A.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C with derating.
It uses chassis mount mounting.
The dimensions are 228.6mm length, 127.0mm width, and 63.5mm height.
It is approved to CB and CE standards.
