| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

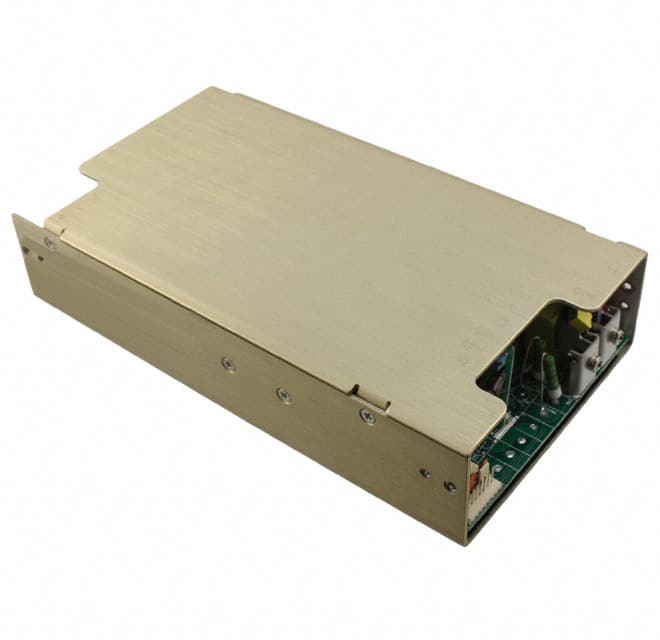

The Artesyn Embedded Technologies LPS252-C is a 250W AC/DC converter designed for industrial and commercial applications. It provides a single 5VDC output at 50A, with an adjustable output feature. The converter operates with an input voltage range of 85 to 264 VAC and 47 to 440 Hz input frequency.
This enclosed unit is designed for chassis mounting, offering dimensions of 262.0mm L x 127.0mm W x 50.8mm H. It boasts an efficiency of 75% and operates within a temperature range of 0°C to 70°C with derating. Key features include PFC, adjustable output, and remote on/off capabilities, making it suitable for various ITE (Commercial) applications.
Additional features include DC input capability, load sharing, remote sense, and a standby output. The LPS252-C is RoHS3 Compliant and has an MSL rating of 1.
85 VAC to 264 VAC at 47 Hz to 440 Hz.
0°C to 70°C with derating.
Enclosed chassis mount.
5 VDC at 50 A.
75%.
262.0mm x 127.0mm x 50.8mm (10.32" x 5.00" x 2.00").
