| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

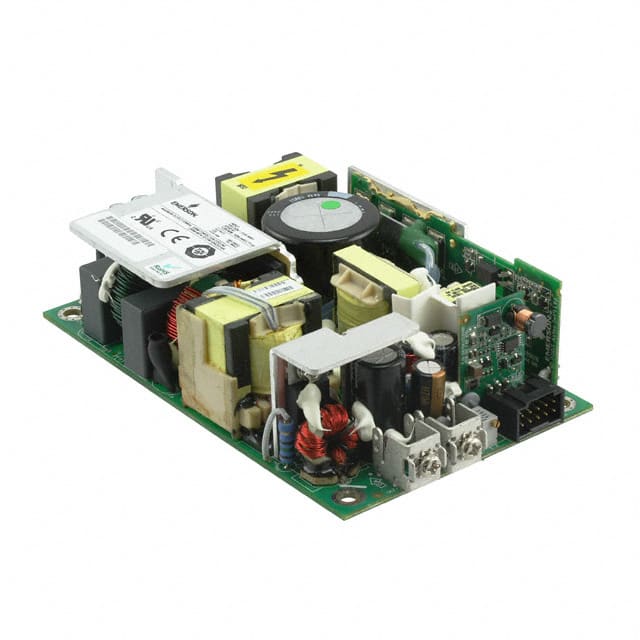

The Artesyn Embedded Power LPS208-M is a versatile AC DC converter with a power rating of 125W under convection cooling, capable of up to 250W with forced air. It operates with a wide input voltage range of 90 to 264 VAC, making it suitable for global applications.
This converter features a single output and includes essential functions such as Active Power Factor Correction (PFC), remote sense, and adjustable output. Its compact dimensions of 5.00" x 3.00" x 1.50" facilitate integration into various systems. The LPS208-M is designed for chassis mounting, providing a secure and stable installation.
With an efficiency of 86% typical and compliance with ITE (Commercial) and Medical standards, this power supply is a reliable choice for demanding environments. It also offers features like power fail signal and overload protection, ensuring operational integrity.
The LPS208-M provides 125W of output power with convection cooling and up to 250W with 30 CFM forced air.
The input voltage range for the LPS208-M is 90 to 264 VAC.
The LPS208-M uses chassis mount.
The typical efficiency of the LPS208-M is 86% at full load.
The operating temperature range for the LPS208-M is 0°C to 70°C, with derating applied above 50°C.
The dimensions of the LPS208-M are 127.0mm (5.00") L x 76.2mm (3.00") W x 38.1mm (1.50") H.
The LPS208-M includes adjustable output, DC input capability, PFC, remote sense, standby output, and universal input.
