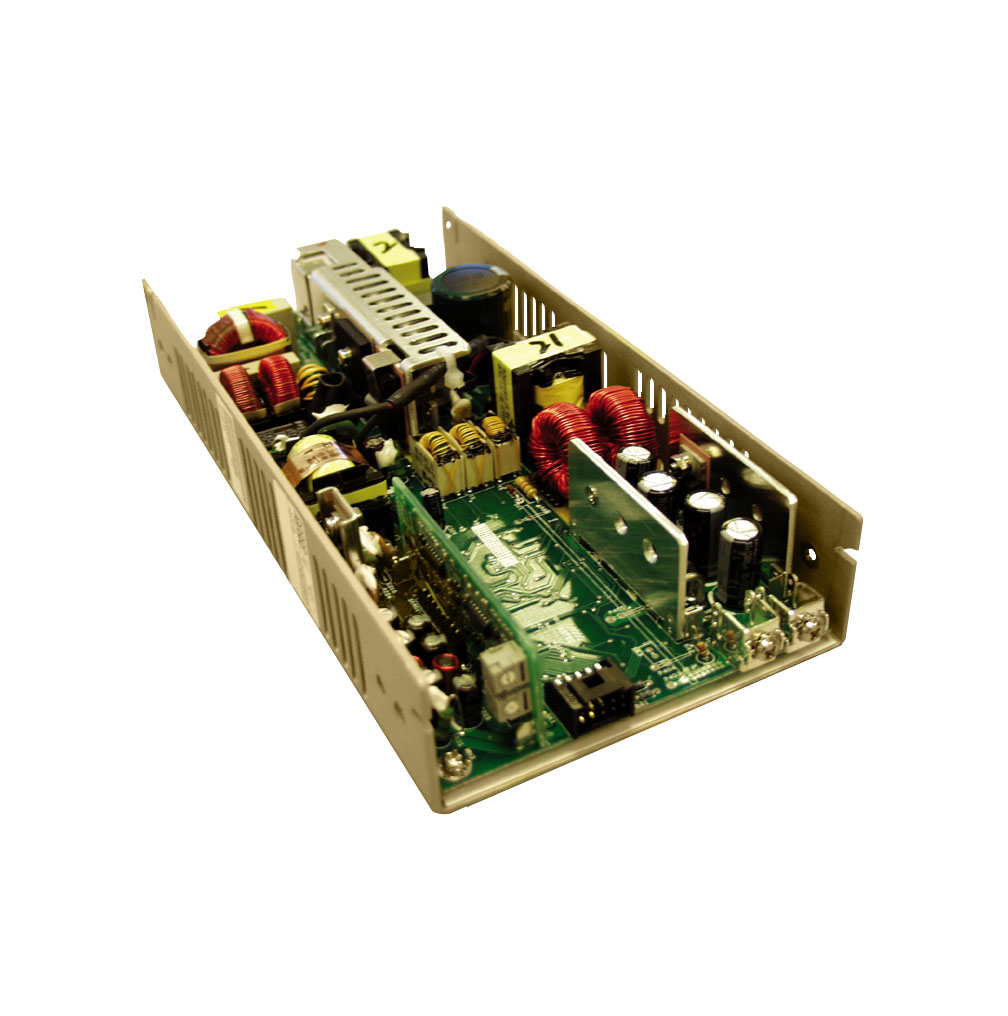

The Artesyn Embedded Power LPS173-M is an open frame AC-DC power supply designed for versatile applications. It accepts a wide input voltage range of 85-264 VAC and provides a regulated 12V output. With a maximum power output of 110W via convection cooling, it can deliver up to 175W when utilizing 30 CFM forced air.
Key features include adjustable output, DC input capability, Power Factor Correction (PFC), remote sense, and a standby output. The unit is protected against overload and overvoltage conditions, and includes an EMI filter for reduced interference. Its operating temperature range is 0°C to 50°C ambient, with derating up to 70°C.
This power supply is suitable for various applications requiring reliable power conversion. Its open frame construction and chassis mount type facilitate integration into systems. The dimensions are 216.0mm x 108.0mm x 38.1mm.
The output voltage is adjustable from 6V to 12V, with a nominal setting of 12V.
The unit utilizes a chassis mount configuration with an open frame enclosure measuring 216.0mm x 108.0mm x 38.1mm.
It operates reliably between 0°C and 50°C ambient temperature, with output derating required from 50°C up to 70°C.
The converter includes a regulated 5V standby output rated at 2A and a 12V auxiliary output rated at 1A.
The hold-up time is 20 milliseconds when subjected to a 175W load at nominal line voltage.
