| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

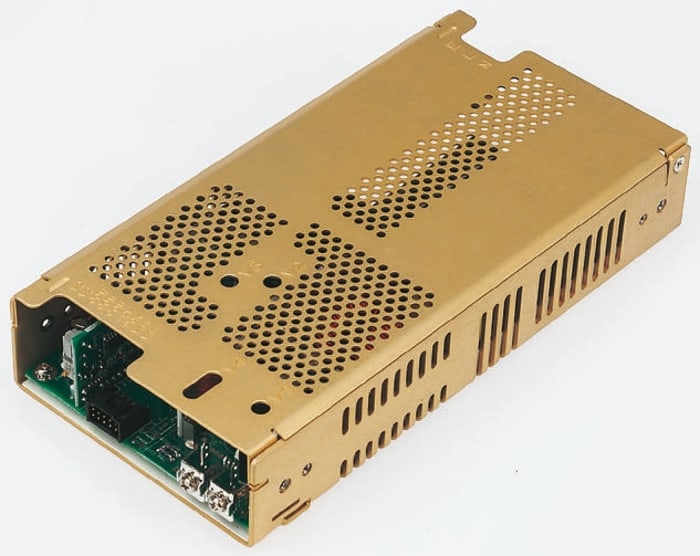

The Artesyn Embedded Power LPS172-M-C is an enclosed AC DC converter designed for various applications, including medical. It provides a single output of 5VDC with a current rating of 35A, delivering a total output power of 130W. The unit accepts a wide input voltage range of 85 VAC to 264 VAC and operates efficiently at 75%.
Key features include adjustable output, DC input capability, load sharing, active power factor correction (PFC), remote sense, a standby output, and universal input. The converter is chassis mounted and has dimensions of 8.50 inches in length, 4.25 inches in width, and 1.50 inches in height. It is designed to operate within a temperature range of 0 to 70 degrees Celsius, with derating as necessary.
This model is compliant with CE standards and offers features such as overload protection and overvoltage protection. The LPS172-M-C is part of the LPS170 series, offering reliable power conversion for demanding environments.
The LPS172-M-C provides a single output voltage of 5 VDC at 35 A.
The output power rating for the LPS172-M-C is 130 W.
The LPS172-M-C accepts an input voltage range of 85 VAC to 264 VAC.
The operating temperature range for the LPS172-M-C is 0 to 70 degrees Celsius.
The LPS172-M-C is a chassis mount device.
Key features include adjustable output, DC input capability, load sharing, PFC, remote sense, standby output, and universal input.
Yes, the LPS172-M-C is specified for medical applications.
