| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Country of Origin | |
| Current | |
| Depth | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Power Rating | |
| Standards | |
| Type | |
| Voltage | |
| Weight | |
| Width |

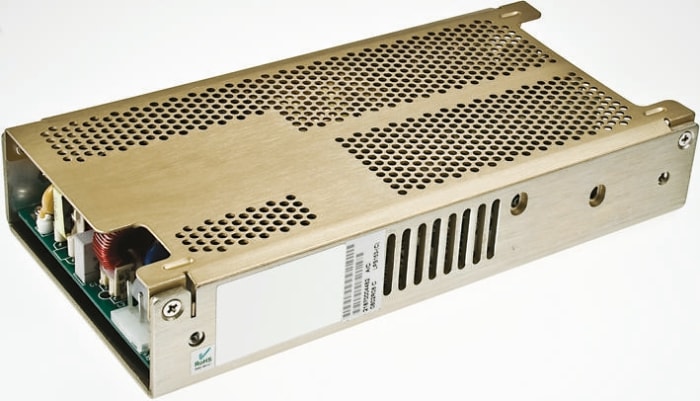

The Artesyn Embedded Technologies LPS153-C is a versatile AC/DC converter designed for various applications. It features a 12V dc output voltage and can deliver up to 12.5A of current, with a power rating of 150W. The unit is enclosed and designed for chassis mounting, making it suitable for integration into systems where space and protection are important.
Key electrical specifications include an efficiency of 75% and a wide input voltage range, accommodating 170-264V ac, 220-300V dc, and 85-132V ac. The operating temperature range is from 0°C to 50°C, with a note of derating at higher temperatures. The converter also includes features such as adjustable output, DC input capability, remote on/off, and remote sense functionality.
This model is built to meet industry standards, including EN61000-3-2, and carries approvals from VDE, UL Recognised, CSA Certified, NEMKO, and BABT. Its robust construction and comprehensive approvals make it a reliable choice for ITE (Commercial) applications. The physical dimensions are 216mm in length, 108mm in width, and 38.1mm in depth, with a weight of 800g.
12V dc.
12.5A.
85-132 V ac, 170-264 V ac, and 220-300 V dc.
150W.
0°C to 50°C.
Enclosed chassis mount.
VDE, UL Recognised, CSA Certified, NEMKO, BABT, CB, CE.
